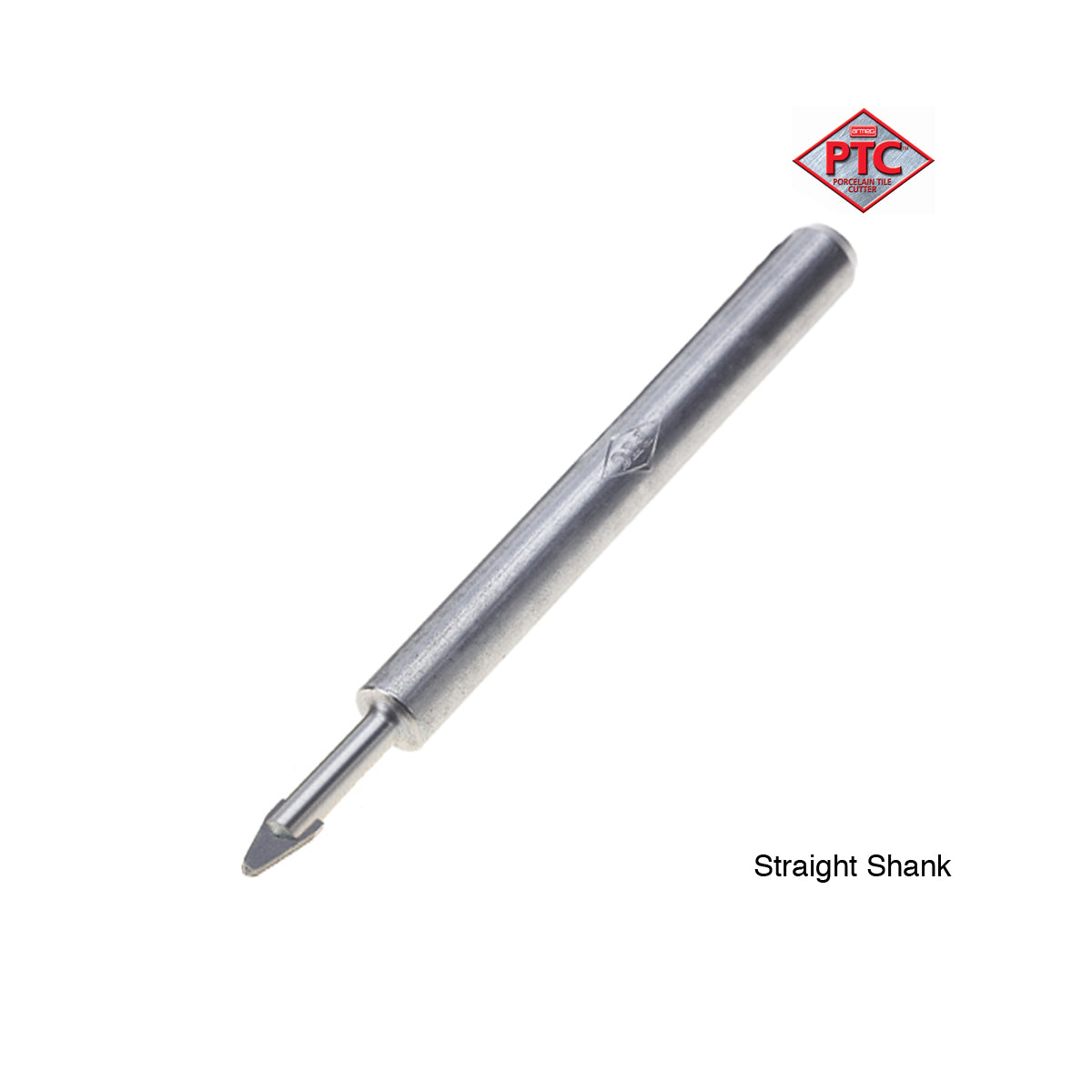

6mm x 100mm Straight Shank Porcelain Tile Cutter | P100 Grade Tungsten Carbide | Diamond Ground Tip | by Promac
The 6mm x 100mm Straight Shank Porcelain Tile Cutter is designed for precision drilling in porcelain, granite, and ceramic materials. Featuring a P100 grade tungsten carbide tip and a diamond ground design, it ensures exceptional hardness and longevity. Ideal for professional use, this cutter requires water cooling to prevent overheating, making it perfect for both small and large drilling projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 6mm x 100mm Straight Shank Porcelain Tile Cutter | P100 Grade Tungsten Carbide | Diamond Ground Tip | by Promac
Brand: Promac
SKU: CTCP06.0
Alternatively Known As: Porcelain Tile Drill Bit, Carbide Tile Drill Bit, Tungsten Carbide Drill Bit, Porcelain Tile Cutter Bit, Diamond Ground Tile Drill
Technical Specifications
- Material: P100 Grade Tungsten Carbide
- Tip Design: Diamond Ground with Unique Grind Profiles
- Diameter Range: 3mm to 13mm
- Compatible Drill Types: Rotary Drills with 3 Jaw Chuck (Plain Shank)
- Cooling Requirement: Must be used with flowing water
- Water Feed Compatibility: Compatible with PTCWFKIT Water Feed Unit and WFCLAMP
- Performance Features: Unique tip design for reduced wander, fluteless body for smoother drilling
- Usage Recommendations: Use at slow speed (300-500 RPM) to avoid overheating
- Dimensions (H x L x W): 100mm x 100mm x 6mm
- Weight: 0.1 kg
Key Features
- P100 Grade Tungsten Carbide Tip for exceptional hardness and longevity
- Diamond Ground Tip with unique grind profiles for precise and effortless start
- Unique tip design creates slightly oversized holes to reduce tile cracks
- Fluteless body for smoother drilling and compatibility with rotary drills
- Must be used with flowing water to prevent overheating
- Compatible with PTCWFKIT Water Feed Unit and WFCLAMP for water cooling
Professional Installation Requirements
- Professional use recommended with proper water cooling setup to ensure safety and optimal performance.
Applications
- Drilling small diameter holes in porcelain, granite, marble, ceramic, natural slate, travertine, quarry tiles
- Ideal for fixing holes and small plugs/anchors from 5 to 10mm
- Suitable for use with rotary drills with 3 jaw chuck (plain shank)
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable tungsten carbide tip reduces frequency of replacement, minimizing waste
- Water cooling reduces dust and overheating, promoting safer and cleaner drilling
Warranty Information
Standard manufacturer warranty applies. Please refer to Promac warranty terms for details.
Available Now
The Promac 6mm x 100mm Straight Shank Porcelain Tile Cutter drill bit is available for immediate purchase. Ideal for professional and DIY tile drilling applications.
