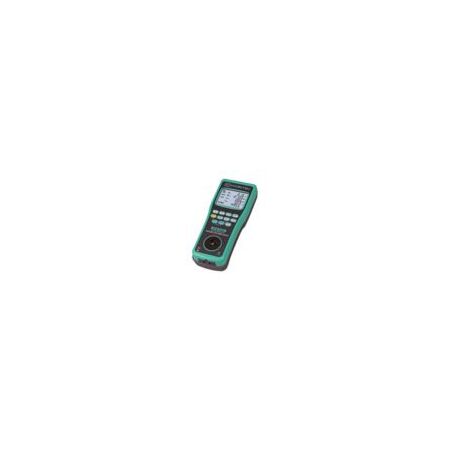

Portable Appliance Tester | 195-253V Input | True RMS Detection & LCD Display | Printer Compatible by Eaton
Ensure electrical safety with the Kyoritsu 6205 Portable Appliance Tester, featuring a 195-253V input range and true RMS detection for accurate measurements. Ideal for residential, commercial, and industrial environments, it offers printer compatibility and an LCD display for easy documentation and visibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Portable Appliance Tester | 195-253V Input | True RMS Detection & LCD Display | Printer Compatible by Eaton
Brand: Eaton
SKU: 062050029A
Alternatively Known As: Portable Appliance Tester, PAT Tester, Electrical Safety Tester, Appliance Safety Tester
Technical Specifications
- Input voltage range: 195 V to 253 V at 50 Hz
- Insulation measurement range: 0 - 20 MΩ with test voltages 250 V to 500 V
- Resistance measurement max: 20 mΩ
- AC voltage measurement max: 270 V
- AC current measurement max: 10 A
- Trip current test ranges: 10/30 mA
- Measurement capabilities include trip time and logging
- Safety category rating: CATII 300V
- RCD test types: x5 and x1
- Recording mode: Capture
- Package includes mains test lead, test lead, flat test prod, adaptor for extension cord test, carry case, fuse, shoulder strap, buckle, batteries, and instruction manual
- Dimensions (H x L x W): 261mm x 104mm x 57mm
- Weight: 0.93 kg
Key Features
- Printer compatible for easy test result documentation
- True RMS detection method for accurate measurements
- LCD display with backlight for clear visibility
- Auto power off and logging capabilities
- USB communication for data transfer
- Trip current test ranges of 10/30mA
- Measurement of insulation resistance, AC voltage, AC current, and trip time
- Safety category rating CATII 300V
Professional Installation Requirements
- No professional installation required; however, operation should be performed by trained personnel familiar with electrical safety testing procedures.
Applications
- Electrical safety testing for portable appliances in residential, commercial, and industrial environments
- Routine appliance safety inspections and compliance verification
Standards & Compliance
- Complies with AS/NZS 3760 – In-service safety inspection and testing of electrical equipment
Environmental Benefits
- Helps ensure electrical appliances are safe and energy efficient, reducing risk of electrical faults and energy waste
- Supports compliance with safety standards to prevent electrical hazards and environmental damage
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Kyoritsu 6205 Portable Appliance Tester by Eaton is available now for immediate purchase. Ideal for electrical safety testing in residential, commercial, and industrial settings.
