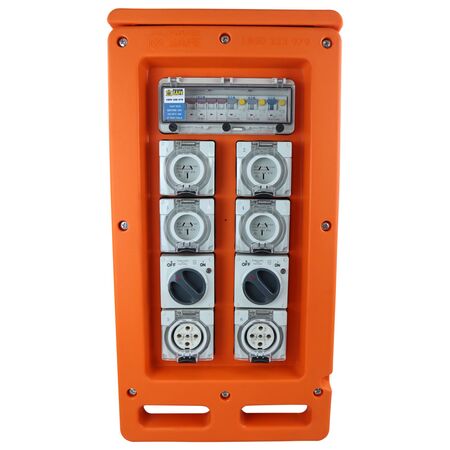

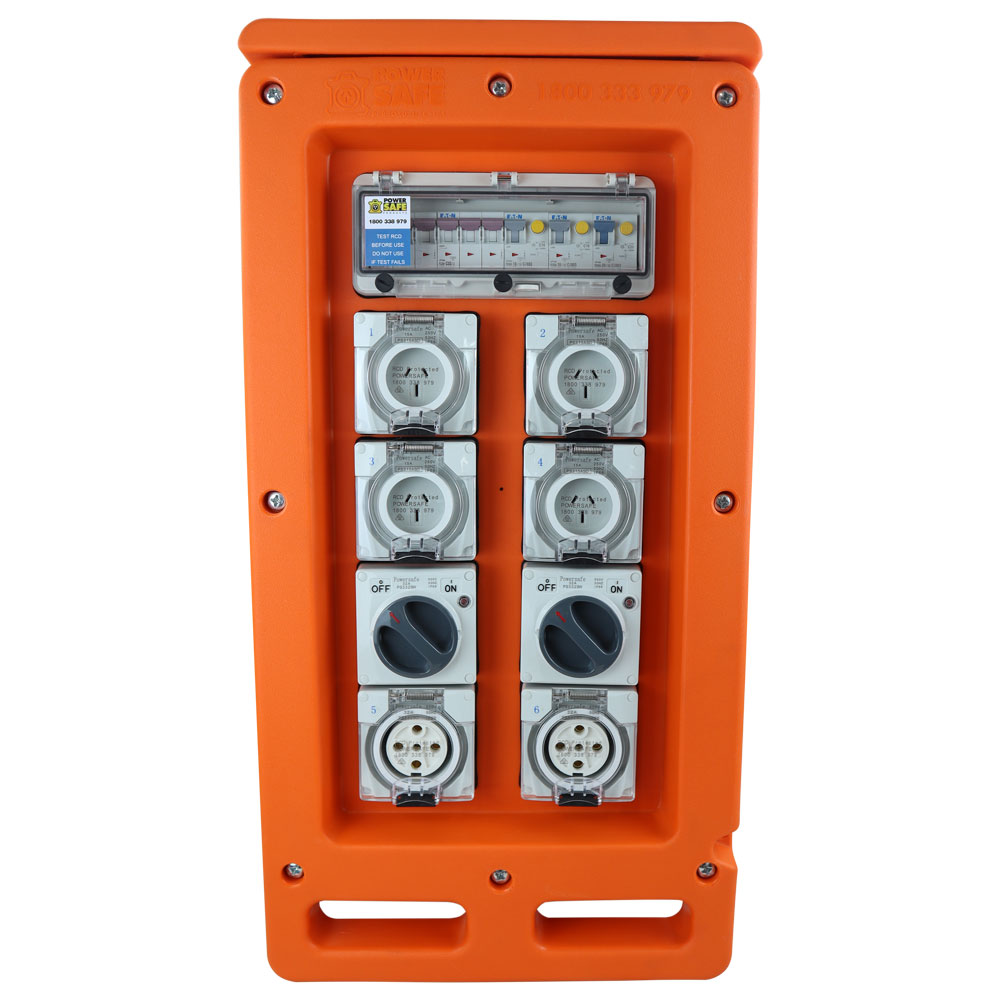

Portable Distribution Board 125A 3 Phase IP66 Powersafe
Powersafe portable distribution board, 125A 3-pole isolator, 125A MCB 10kA, 63A CEE cascade, 32A outlets, IP65 66. Site power.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Portable Power Distribution Board WMM-02 | 125A 3 Phase | IP65/IP66 Rated | by Powersafe
Brand: Powersafe
SKU: WMM-02
Alternatively Known As: portable power distribution board, site power board, temporary power board, 125A 3 phase distribution board, Powersafe WMM-02
Technical Specifications
- Main isolation switch: 125A 3 pole, IP65
- Main circuit breaker: 1 x 125A 3 pole MCB 10kA
- Cascade outlet: 1 x 63A 415V 5 pin CEE Form switched
- Switched socket outlets: 2 x 32A 415V 5 pin IP66
- Auto switched outlets: 4 x 15A 240V IP66
- Additional MCBs: 1 x 63A 3 pole 10kA, 2 x 32A 3 pole 10kA
- RCDs: 1 x 63A 4 pole 30mA, 1 x 20A 2 pole RCD/MCB combo 10kA, 2 x 16A 2 pole RCD/MCB combo 10kA
- Breather drain included
- Board rating: 125A three phase 415V
- Continuous current draw (RDF 0.4): 50A three phase 415V
- Thermal management system available for full 125A constant load
- IP65/IP66 rated enclosure
- Dimensions (H x L x W): 770mm x 290mm x 500mm
- Weight: 20 kg
Key Features
- 125A 3 pole main isolation switch (IP65 rated) for robust safety
- 1 x 125A 3 pole MCB 10kA for main circuit protection
- 1 x 63A 415V 5 pin CEE Form switched cascade outlet for series connection
- 2 x 32A 415V 5 pin IP66 switched socket outlets for heavy-duty equipment
- 4 x 15A 240V IP66 auto switched outlets for general use
- 1 x 63A 3 pole MCB 10kA, 2 x 32A 3 pole MCB 10kA for additional circuit protection
- 1 x 63A 4 pole RCD 30mA for enhanced safety
- 1 x 20A 2 pole RCD/MCB combo 10kA, 2 x 16A 2 pole RCD/MCB combo 10kA
- Breather drain for moisture management
- Optional lead fitting available
- IP65/IP66 rated for outdoor and harsh environments
- Board rating: 125A three phase 415V
Professional Installation Requirements
- Installation and connection must be performed by a licensed electrician to ensure compliance with Australian standards and site safety requirements.
Applications
- Construction sites requiring temporary power distribution
- Events and outdoor venues needing multiple high-capacity outlets
- Industrial and commercial facilities for portable power supply
- Mining and infrastructure projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient and safe temporary power distribution, reducing the need for multiple generators and minimizing energy waste.
- Durable construction ensures long service life, reducing replacement frequency and associated environmental impact.
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
The Powersafe WMM-02 Portable Power Distribution Board is available for immediate purchase. Ideal for construction sites, events, and industrial applications requiring robust and flexible temporary power solutions.
