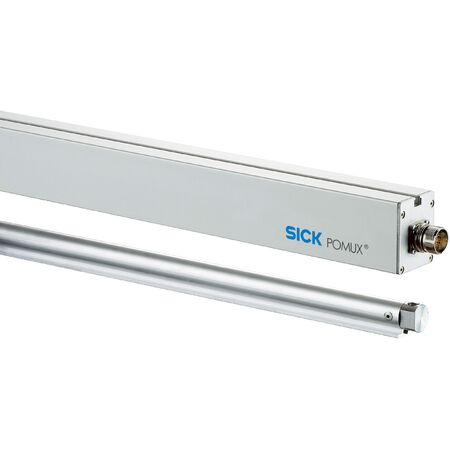

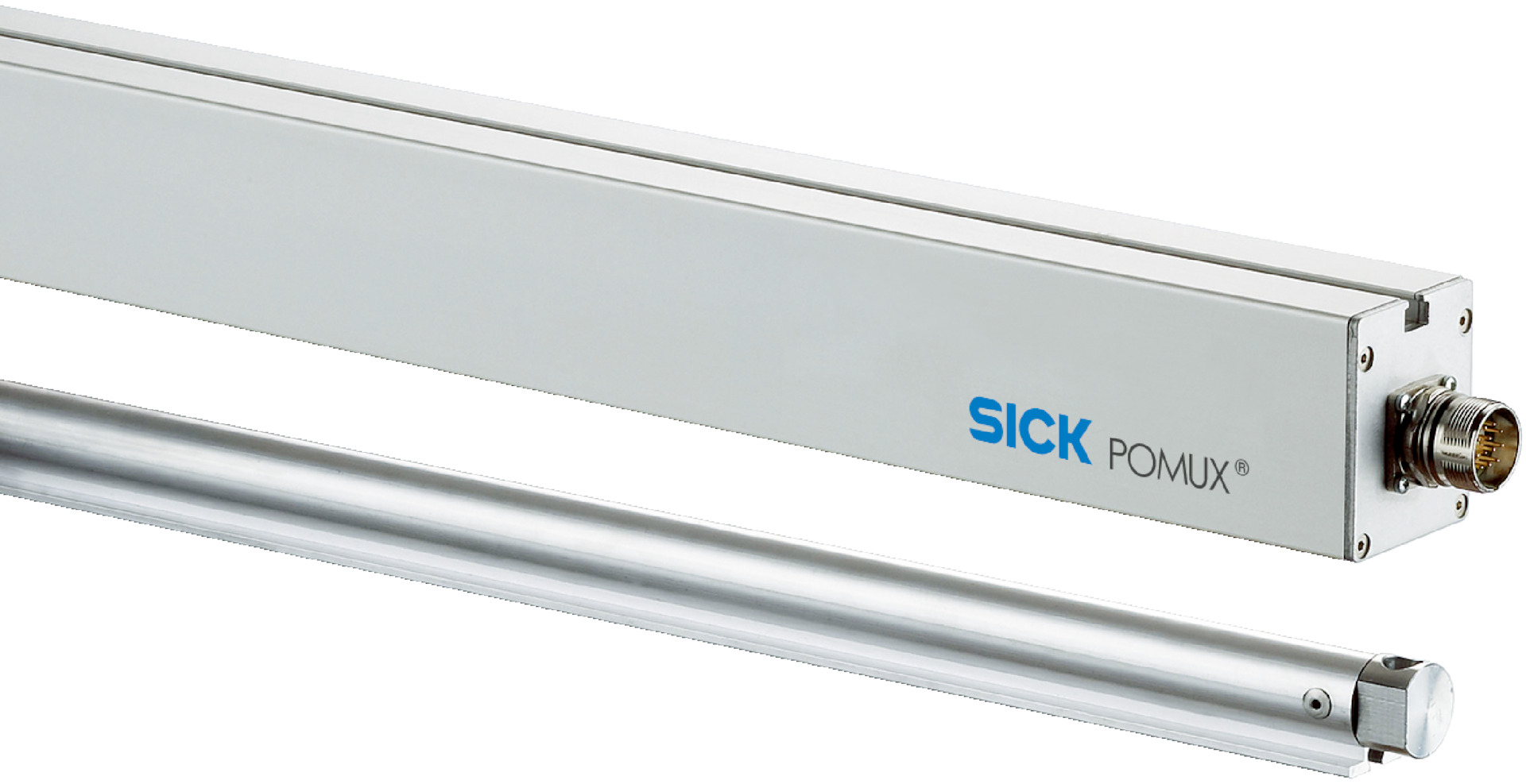

Position Measuring System KHK53-AXB01700 | 1700 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
The KHK53-AXB01700 Position Measuring System is designed for precision in industrial automation, featuring a measuring range of up to 1700 m and a high resolution of 0.1 mm. With a robust IP65 enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing processes and safety-related position monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Position Measuring System KHK53-AXB01700 | 1700 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1030082
Alternatively Known As: Position Measuring System, Linear Position Sensor, Industrial Position Encoder
Technical Specifications
- Measuring range: 0 m to 1700 m
- Resolution: 0.1 mm
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Traversing speed: 6.6 m/s
- Communication interface: SSI, 24 Bit gray code
- Parametrization interface: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 seconds
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: Male connector, M23, 12-pin
- Enclosure rating: IP65 with mating plug inserted
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Read head material: AlMgSiPbF28
- Dimensions (H x L x W): 100mm x 300mm x 150mm
- Weight: 5.2 kg
Key Features
- High measuring range up to 1700 m
- High resolution of 0.1 mm
- Repeatability of 0.3 mm
- Robust IP65 rated enclosure for harsh environments
- Fast traversing speed of 6.6 m/s
- Reliable communication via SSI and RS-422 interfaces
- Mean time to dangerous failure (MTTFD) of 21 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation and control
- Position measurement in manufacturing processes
- Safety-related position monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements
- Low power consumption of 250 mA at 10-32 V supply voltage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK KHK53-AXB01700 position measuring system is available for immediate purchase, ideal for industrial automation and safety-critical applications.
