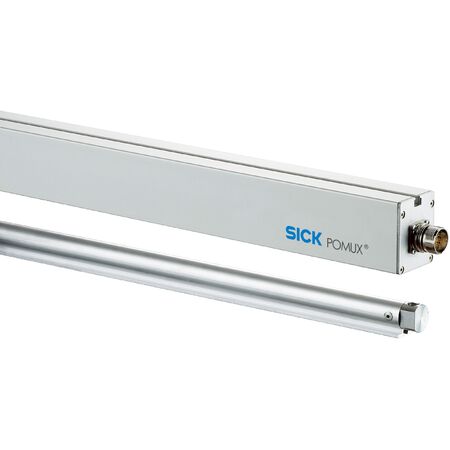

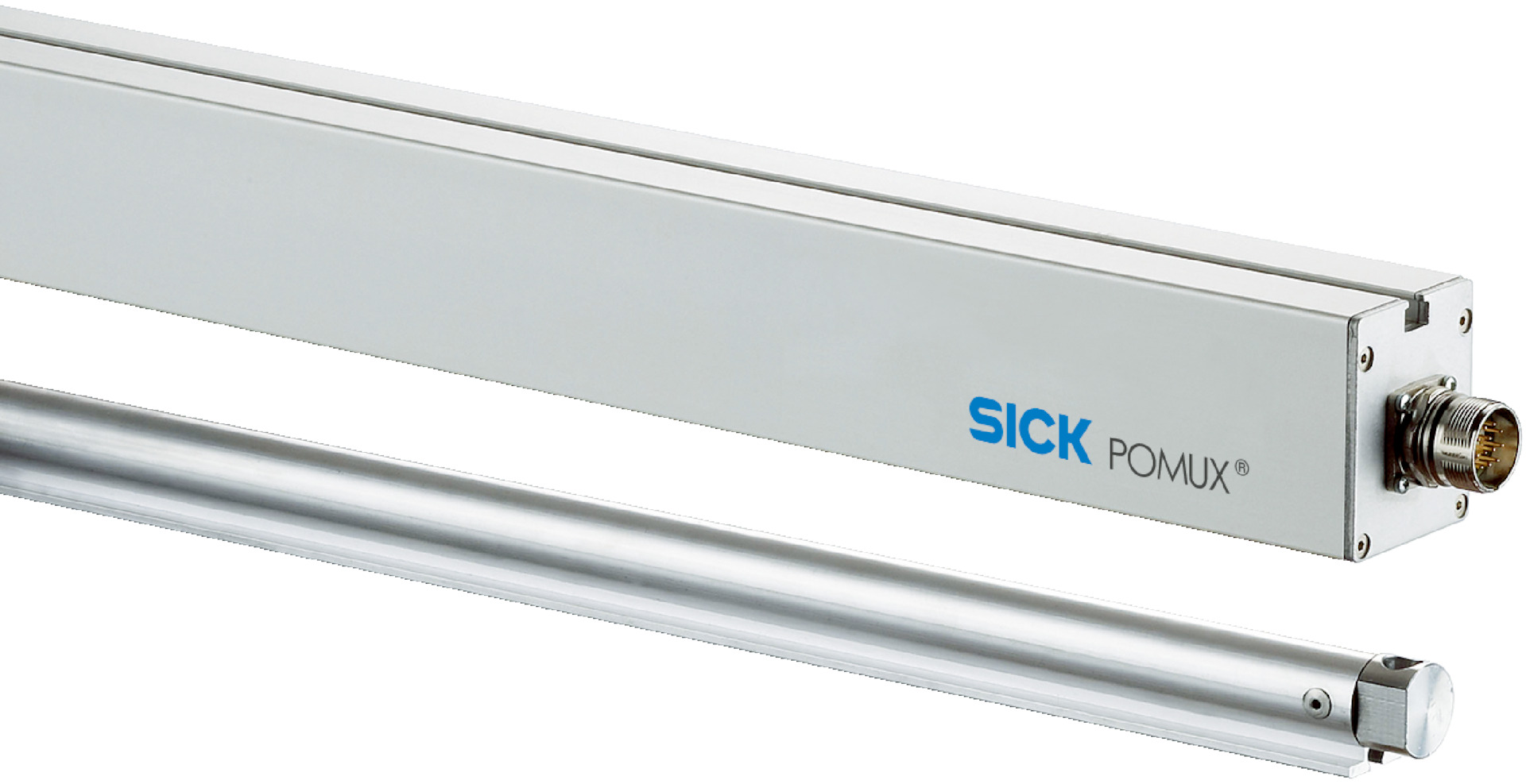

Position Measuring System KHK53-AXS00107 | 107 m Range | 0.1 mm Resolution | IP66 Rated | by SICK
The Position Measuring System KHK53-AXS00107 offers an impressive measuring range of up to 107 m with a precise 0.1 mm resolution, making it ideal for industrial automation and safety-critical applications. With a robust IP66 rated enclosure, it withstands harsh environments while providing high repeatability and fast traversing speeds of 6.6 m/s. Perfect for manufacturing processes and position monitoring, this sensor ensures reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Position Measuring System KHK53-AXS00107 | 107 m Range | 0.1 mm Resolution | IP66 Rated | by SICK
Brand: SICK
SKU: 1030059
Alternatively Known As: Position Measuring System, Linear Position Sensor, Industrial Position Encoder, Safety Position Sensor
Technical Specifications
- Measuring range: 0 m to 107 m
- Resolution: 0.1 mm
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Traversing speed: 6.6 m/s
- Communication interface: SSI, 24 Bit gray code
- Position forming time: +0.8 ms
- Parametrization interface: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 s
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: 12-wire cable, 3 m length
- Read head material: AlMgSiPbF28
- Position tolerance: ±10 mm
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP66 (IEC 60529)
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Dimensions (H x L x W): 100mm x 300mm x 150mm
- Weight: 2.7 kg
Key Features
- Measuring range up to 107 m with 0.1 mm resolution
- High repeatability of 0.3 mm
- Robust IP66 rated enclosure for harsh environments
- Fast traversing speed of 6.6 m/s
- Communication via SSI interface with 24 Bit gray code
- Wide operating temperature range from -20 °C to +60 °C
- High resistance to shocks (30 g) and vibration (10 g)
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation and control
- Position measurement in manufacturing processes
- Safety-related position monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient electronics reduce power consumption during operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-AXS00107 Position Measuring System is available for immediate purchase, ideal for industrial automation and safety-critical applications.
