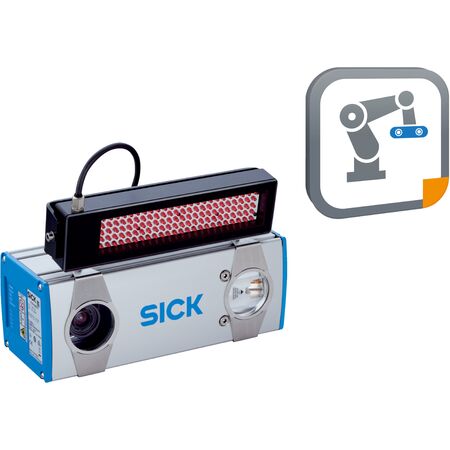

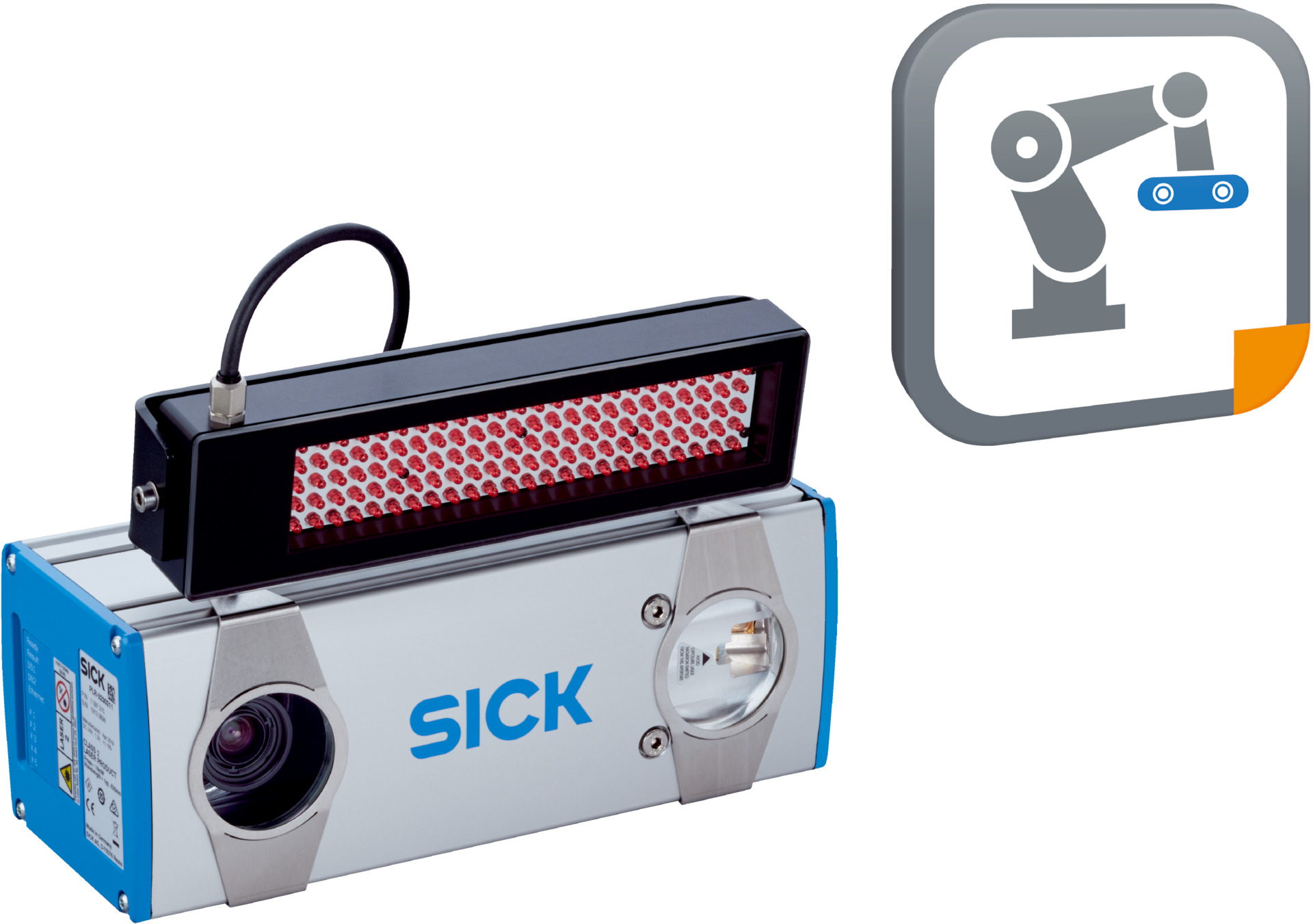

Position Sensor PLR3200-01L | ±0.5 mm Accuracy | 2D/3D Snapshot Technology | IP65 Rated | by SICK
The PLR3200-01L Position Sensor offers precise position determination with ±0.5 mm accuracy and ±0.1° angular accuracy, making it ideal for industrial automation and robotics applications. Featuring advanced 2D and 3D snapshot technology, this sensor ensures fast part localization in under 600 ms. With a robust anodised aluminum housing and IP65 rating, it’s built for durability and reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 265 mm to 515 mm, recommended 365 mm
- Light source: Laser 635 nm, LED 630 nm, Aiming laser 680 nm
- Laser class: 2 (IEC 60825-1:2014)
- LED class: Risk group 0 (Exempt, IEC62471:2006)
- Supply voltage: 24 V DC ± 20%
- Power consumption: 10 W ± 20%
- Current consumption: Typical 0.7 A, Max 1.2 A at 24 V DC
- Housing material: Anodised aluminum
- Window material: PMMA
- Enclosure rating: IP65
- Localization accuracy: ± 0.5 mm, ± 0.1°
- Output data: X, Y, Z (mm), roll, pitch, yaw (degrees)
- Data transmission rate: 100 Mbit/s
- Protocols supported: TCP/IP XML and CSV, PROFINET, EtherNet/IP, FTP
- Electrical connection: M12 male connector, 8-pin, x-coded and M12, 5-pin, L-coded
- Operating temperature: 0 °C to +45 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 0% to 90%, non-condensing
- Shock load: Half sine 15 g, 11 ms
- Vibration resistance: 5 g (58 Hz to 150 Hz)
- Dimensions (H x L x W): 84mm x 225mm x 90mm
- Weight: 2.5 kg
Key Features
- Position determination with ±0.5 mm accuracy and ±0.1° angular accuracy
- 2D and 3D snapshot technology with image analysis
- Light sources include laser (635 nm), LED (630 nm), and aiming laser (680 nm)
- Fast part localization time under 600 ms
- Robust aluminum anodised housing with IP65 rating
- Ethernet connectivity with multiple protocols including TCP/IP, PROFINET, EtherNet/IP
- Factory calibrated for immediate use
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensors and electrical standards to ensure proper setup and safety.
Applications
- Industrial automation for position determination
- Robotics for part localization
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption of 10 W
- Durable IP65 rated housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PLR3200-01L Position Determination Sensor is available for immediate purchase, ideal for industrial automation and robotics applications.
