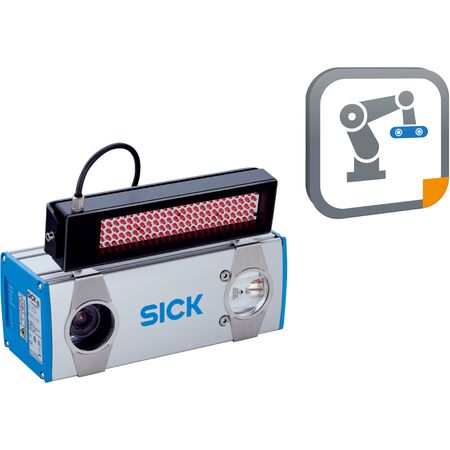

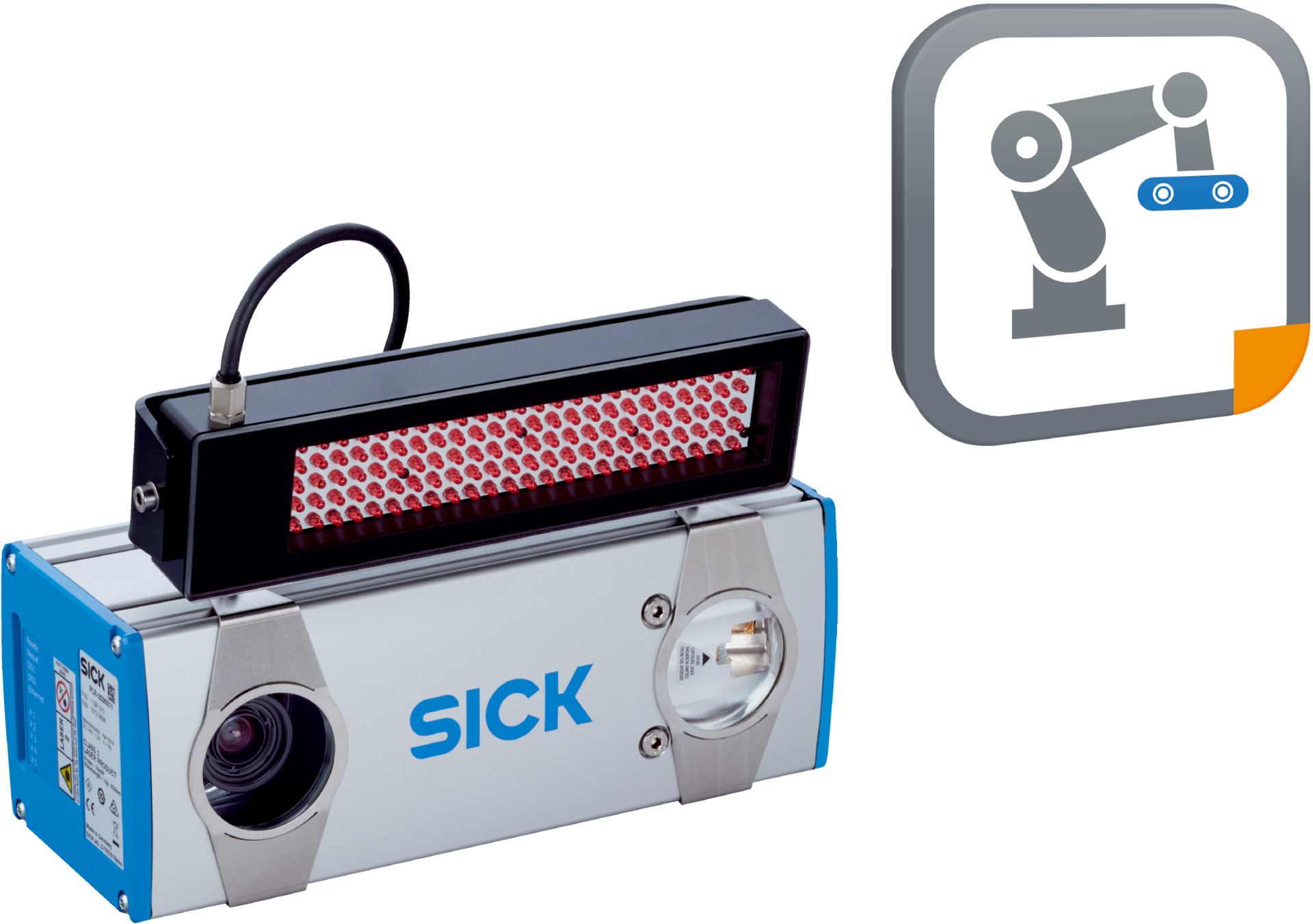

Position Sensor PLR3200-02 | ±0.8 mm Accuracy | 2D & 3D Snapshot Technology | IP65 Rated | by SICK
The PLR3200-02 Position Sensor is designed for industrial automation, offering precise position determination with ±0.8 mm accuracy and a measurement range of 630 mm to 880 mm. Featuring advanced 2D and 3D snapshot technology, this sensor is perfect for robotics and quality control applications, ensuring fast part localization in under 600 ms. Its robust aluminum housing and IP65 rating provide durability and protection against dust and water, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 24 V DC, ± 20%
- Power consumption: 10 W, ± 20%
- Current consumption: Typical 0.7 A, Max 1.2 A at 24 V DC
- Measurement range: 630 mm to 880 mm, recommended 730 mm
- Light source: Laser 635 nm, LED 630 nm, Aiming laser 680 nm
- Laser class: 2 (IEC 60825-1:2014)
- LED class: Risk group 0 (Exempt, IEC62471:2006)
- Localization accuracy: ± 0.8 mm, ± 0.2°
- Part localization time: < 600 ms
- Output data: X, Y, Z (mm), roll, pitch, yaw (degrees)
- Interfaces: Ethernet 100 Mbit/s, TCP/IP XML and CSV, PROFINET, EtherNet/IP, FTP
- Electrical connection: M12 male connector, 8-pin, x-coded and M12, 4-pin, A-coded
- Housing material: Aluminum (anodised)
- Window material: PMMA
- Enclosure rating: IP65
- Operating temperature: 0 °C to +45 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 0% to 90%, non-condensing
- Shock load: Half sine 15 g, 11 ms
- Vibration resistance: 5 g (58 Hz to 150 Hz)
- Dimensions (H x L x W): 84mm x 275mm x 90mm
- Weight: 2.5 kg
Key Features
- Position determination with ±0.8 mm and ±0.2° accuracy
- Measurement range from 630 mm to 880 mm, recommended 730 mm
- 2D and 3D snapshot technology with image analysis
- Light source includes laser (635 nm) and LED (630 nm)
- Aiming laser at 680 nm
- Laser class 2 (IEC 60825-1:2014) and LED class Risk group 0 (IEC62471:2006)
- Fast part localization time under 600 ms
- Ethernet interface with 100 Mbit/s data transmission and multiple protocols (TCP/IP XML, CSV, PROFINET, EtherNet/IP, FTP)
- Robust aluminum anodised housing with PMMA window
- IP65 rated enclosure for dust and water protection
- Factory calibrated for immediate use
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation for precise position determination
- Robotics for part localization and orientation
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 10 W
- Durable aluminum housing extends product life reducing waste
- Factory calibration reduces need for additional setup and testing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PLR3200-02 Position Determination Sensor is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise position measurement.
