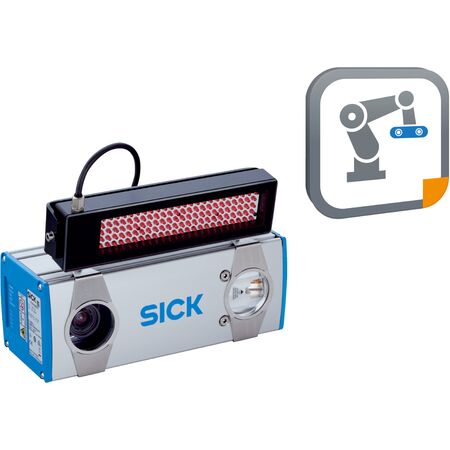

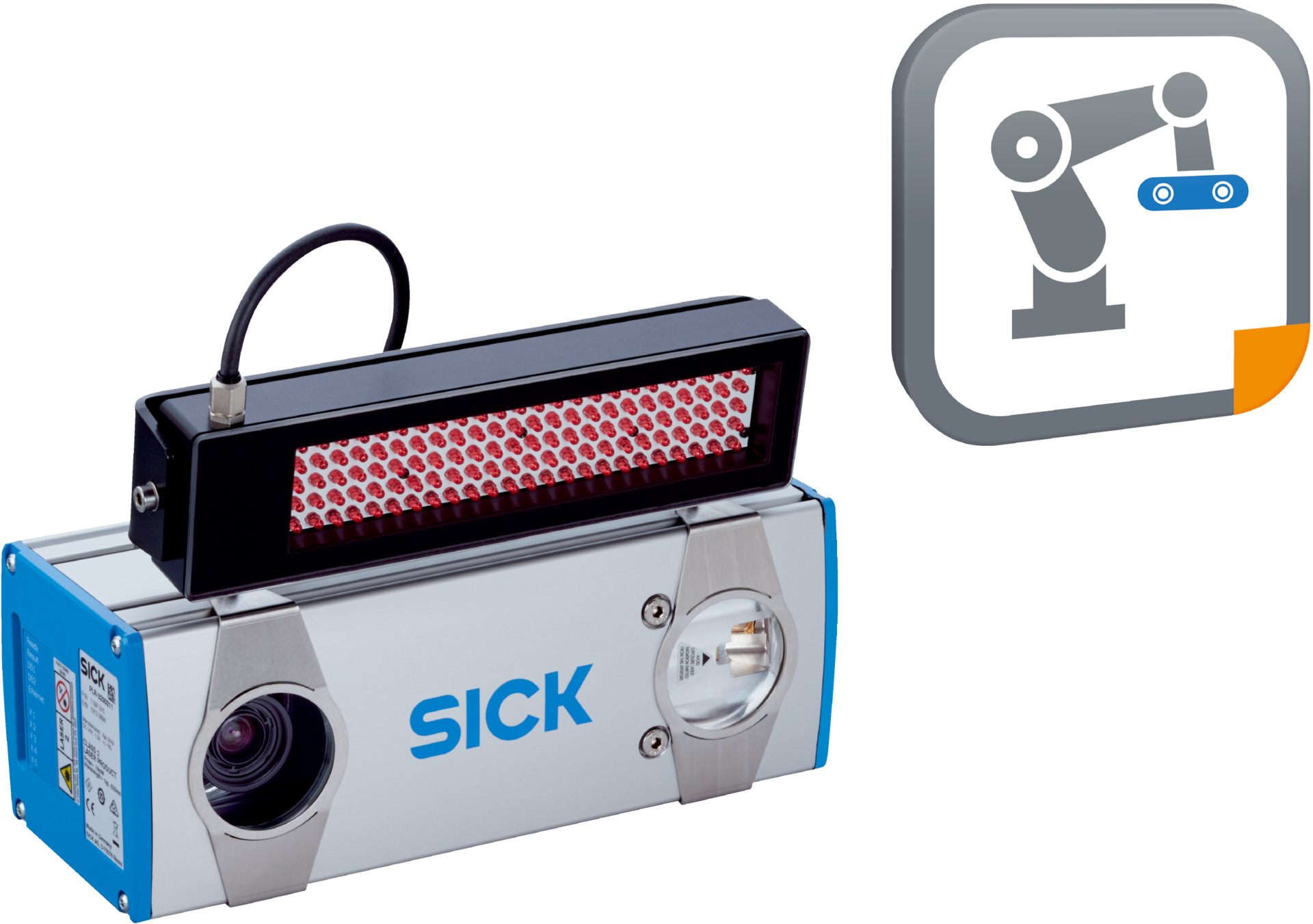

Position Sensor PLR3200-02L | 2D & 3D Snapshot Technology | IP65 Rated | by SICK
The PLR3200-02L Position Sensor excels in precise position determination with ±0.8 mm and ±0.2° accuracy, making it ideal for industrial automation and robotics. Featuring advanced 2D and 3D snapshot technology, this sensor operates within a measurement range of 630 mm to 880 mm, ensuring reliable performance in quality control and inspection systems. Its robust aluminum housing and IP65 rating provide durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Tasks: Position determination
- Example volume of view: 260 mm x 260 mm (typical)
- Measurement range: 630 mm to 880 mm, recommended 730 mm
- Light source: Laser 635 nm, LED 630 nm, Aiming laser 680 nm
- Laser class: 2 (IEC 60825-1:2014)
- LED class: Risk group 0 (Exempt, IEC62471:2006)
- Technology: 2D snapshot, 3D snapshot, image analysis
- Supply voltage: 24 V DC, ± 20%
- Power consumption: 10 W, ± 20%
- Current consumption: Typical 0.7 A, Max 1.2 A at 24 V DC
- Housing material: Aluminum (anodised)
- Window material: PMMA
- Enclosure rating: IP65
- Part localization time: < 600 ms
- Localization accuracy: ± 0.8 mm, ± 0.2°
- Output data: X, Y, Z (mm), roll, pitch, yaw (degrees)
- Ethernet data transmission rate: 100 Mbit/s
- Protocols: TCP/IP XML and CSV (robot), TCP/IP (operator), PROFINET, EtherNet/IP, FTP
- Electrical connection: M12 male connector, 8-pin, x-coded and M12, 5-pin, L-coded
- User interface: Web server
- Operating ambient temperature: 0 °C to +45 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 0% to 90%, non-condensing
- Shock load: Half sine 15 g, 11 ms
- Vibration resistance: 5 g (58 Hz to 150 Hz)
- Dimensions (H x L x W): 84mm x 275mm x 90mm
- Weight: 2.5 kg
Key Features
- Position determination with ±0.8 mm and ±0.2° accuracy
- Measurement range from 630 mm to 880 mm, recommended 730 mm
- 2D and 3D snapshot technology with image analysis
- Light sources include laser (635 nm), LED (630 nm), and aiming laser (680 nm)
- Laser class 2 compliant with IEC 60825-1:2014
- LED class Risk group 0 (Exempt) compliant with IEC62471:2006
- Fast part localization time under 600 ms
- Robust aluminum anodised housing with IP65 rating
- Ethernet interface with 100 Mbit/s data transmission and multiple protocols including TCP/IP, PROFINET, EtherNet/IP
- Web server user interface for easy configuration
- Factory calibrated for immediate use
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial automation for precise position determination
- Robotics for part localization and orientation
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 10 W reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Factory calibration minimizes need for recalibration and maintenance
Warranty Information
Warranty details available upon request from manufacturer SICK.
Available Now
The SICK PLR3200-02L Position Determination Sensor is available for immediate purchase, ideal for industrial automation, robotics, and quality control applications.
