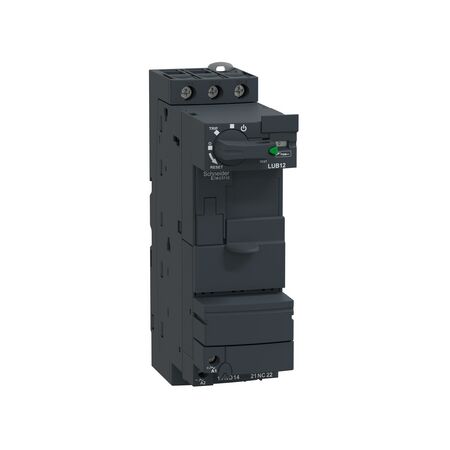

Power Base 12A | 12A Rated | Screw Clamp Terminals | Modular Design | @Pack of 1 | by Clipsal
Power Base 12A is designed for the TeSys U motor starter system, featuring a robust 12A rated operational current and screw clamp terminals for secure connections. Ideal for industrial motor control panels and automation systems, this modular design allows for easy integration and expansion, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Power Base 12A | 12A Rated | Screw Clamp Terminals | Modular Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLUB12
Alternatively Known As: TeSys U Power Base, Schneider Electric Power Base 12A, Motor Starter Base 12A, SCHLUB12
Technical Specifications
- Rated operational current: 12A
- Compatible with TeSys U motor starter system
- Connection type: Screw clamp terminals
- Mounting: DIN rail or panel mounting
- Voltage: 690V AC max
- Frequency: 50/60Hz
- Degree of protection: IP20 (when installed in enclosure)
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 120mm x 100mm x 45mm
- Weight: 0.35 kg
Key Features
- 12A rated power base for TeSys U motor starter system
- Screw clamp terminals for secure connections
- Modular design for easy integration and expansion
- Reliable and robust construction for industrial environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified technician in accordance with local electrical regulations.
Applications
- Industrial motor control panels
- Automation systems
- Switchboards
- Machinery requiring modular motor starters
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Modular design reduces material waste during upgrades or replacements
- Efficient power management helps lower energy consumption in industrial applications
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Power Base 12A SCHLUB12 is available for immediate purchase. Ideal for industrial automation, motor control panels, and modular starter systems.
