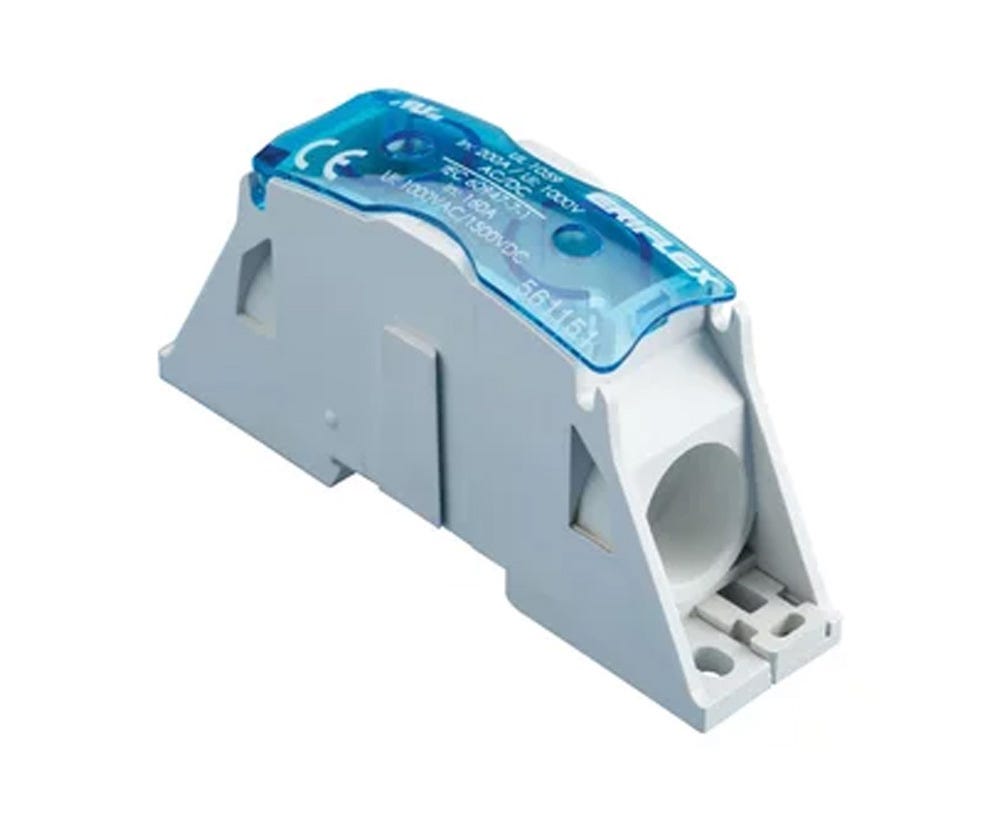

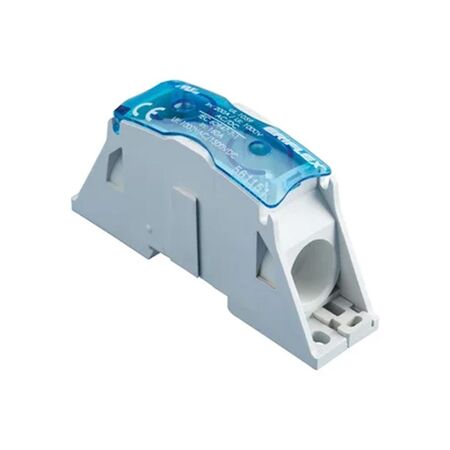

Power Block SB80 | 85 A UL Rated | Tinned Copper | Compact Design | @EA of 1 | by Cabac
The Power Block SB80 is an 85 A UL-rated electrical power block designed for efficient electrical distribution and connection. Made from tinned copper, it allows for direct connections with copper or aluminum conductors, ensuring a reliable and safe installation. Ideal for both residential and commercial applications, this compact power block features a 95% fill ratio and is compliant with various electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Power Block SB80 | 85 A UL Rated | Tinned Copper | Compact Design | @EA of 1 | by Cabac
Brand: Cabac
SKU: 561150
Alternatively Known As: Power Distribution Block, Electrical Power Block, Copper Power Block, SB80 Power Block
Technical Specifications
- Current Rating: 85 A
- Material: Tinned copper or aluminum
- Fill Ratio: 95%
- Standards Compliance: EN 60947-7-1, EN 45545-2-2013, ANSI/UL 1059
- Dimensions (H x L x W): 40mm x 100mm x 80mm
- Weight: 0.5 kg
Key Features
- Compact power block with high short circuit current rating
- Tinned copper or aluminum block allows for copper or aluminum conductor direct connections or using ferrule
- Design allows for visual inspection of conductor and confirmation of connection
- 95% fill ratio
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical distribution and connection in residential and commercial electrical systems
- Suitable for use in power distribution panels and switchboards
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Allows for efficient electrical connections reducing energy loss
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Cabac Power Block SB80 85A Copper is available for immediate purchase, ideal for electrical distribution and connection applications in residential and commercial settings.
