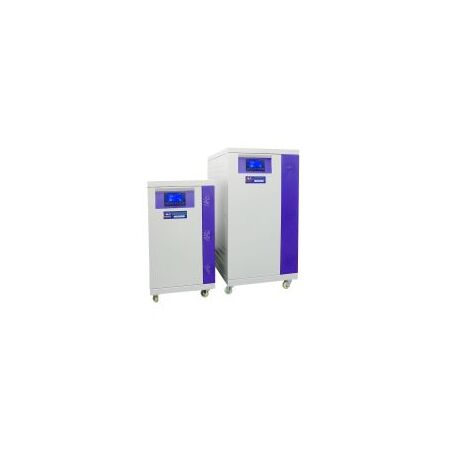

Power Conditioner 100kVA Three Phase AVR PSS
PSS three phase power conditioner features 100kVA rating, per-phase voltage regulation and surge protection. Ideal for industrial and medical loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 100kVA Three-Phase Automatic Voltage Regulator, AVR3-100, Industrial Power Conditioner
Technical Specifications
- Model: AVR3-100
- Rated Capacity: 100kVA
- Configuration: Three-phase
- Voltage Regulation: Automatic regulation across each phase
- Output Voltage Tolerance: ±2%
- Efficiency: ≥98%
- Power Factor: 0.95 to 1.0
- Load Compatibility: Inductive and capacitive loads
- Protection: Surge suppression, short-circuit protection and overload protection
- Phase Balancing: Supports stability with uneven phase loads
- Delay: Selectable delay time
- Auxiliary Output: None
- Dimensions (H x L x W): 1100mm x 660mm x 850mm
- Weight: 430 kg
Key Features
- Independent voltage regulation for each phase
- Protects voltage-sensitive equipment from brownouts, overvoltage, surges and electrical noise
- High-efficiency operation helps minimise heat loss and operating costs
- Supports inductive and capacitive loads
- Phase-balancing function improves supply stability with uneven loads
- Suitable for industrial, medical, data centre, mining, telecommunications and critical infrastructure applications
- Industrial-grade cabinet construction for fixed installation
Professional Installation Requirements
- Hardwired installation and commissioning should be completed by a licensed electrical contractor and, where required by PSS warranty conditions, an approved and authorised PSS technician or contractor. Installation must comply with the manufacturer's instructions and applicable Australian electrical installation requirements.
Applications
- Industrial automation and PLC equipment
- Medical imaging and diagnostic equipment
- Data centres and server rooms
- Mining sites and unstable electrical grids
- Telecommunications and networking facilities
- Broadcast and security infrastructure
- Commercial air-conditioning power distribution
- Other voltage-sensitive industrial and critical loads
Standards & Compliance
- AS/NZS 3000: Electrical installations — relevant to fixed hardwired installation
- AS/NZS 3820: Essential safety requirements for electrical equipment — relevant electrical safety framework where no more specific equipment standard applies
Environmental Benefits
- High efficiency of at least 98% helps reduce electricity losses during operation
- Voltage stabilisation can reduce stress on connected equipment and support longer service life
- Fixed industrial equipment can be serviced or repaired, potentially reducing replacement waste
Warranty Information
PSS standard warranty: 2-year return-to-base warranty from the original purchase date, subject to the manufacturer's warranty terms. Hardwired products must be commissioned by an approved and authorised PSS technician or contractor within four weeks of invoicing to maintain warranty validity.
Available Now
Available through PSS Distributors and authorised Australian distributors; contact PSS for current stock status and quotation.
