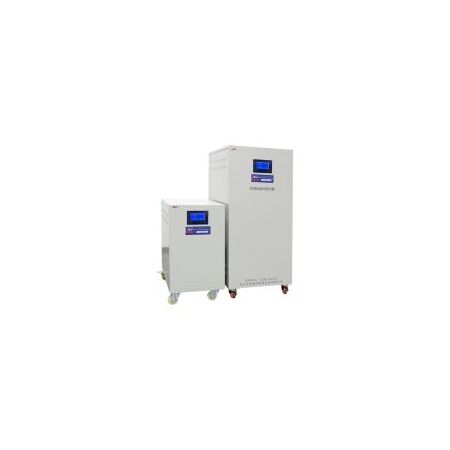

Power Conditioner 10kVA Single Phase AVR PSS
PSS single phase power conditioner features 10kVA rating, automatic voltage regulation and brownout and surge protection. Ideal for medical and alarm equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 10 kVA Automatic Voltage Regulator, Single-Phase Power Conditioner, Voltage Stabiliser, Power Line Conditioner
Technical Specifications
- Model: AVR1-10
- Rated Capacity: 10 kVA
- Indicative Active Power: 8 kW at 0.8 power factor
- Phase: Single phase
- Nominal Input Voltage: 230 V AC
- Input Voltage Range: Approximately ±15%
- Output Regulation: Approximately 230 V AC ±5% for the AVR1 series
- Protection: Brownout, overvoltage, surge, overload, short circuit and transient protection
- Delay Function: Selectable output delay
- Load Compatibility: Inductive and capacitive loads
- Cooling: High-efficiency thermal design
- Installation Connection: Hardwired connection expected for this capacity
- Dimensions (H x L x W): 650mm x 320mm x 400mm
- Weight: 30.5 kg
Key Features
- Automatic voltage regulation for stabilised output power
- Protects connected equipment from brownouts, voltage fluctuations and surges
- Selectable delay time helps prevent nuisance switching after minor interruptions
- Suitable for inductive and capacitive loads
- Designed for sensitive and mission-critical electronic equipment
- Supports medical equipment, alarm and security systems, POS terminals, computers, communications equipment and audio/visual systems
- High-efficiency design helps minimise heat generation and power losses
Professional Installation Requirements
- Installation and commissioning should be completed by a licensed electrician. The 10 kVA unit is expected to use a hardwired connection and must be installed, earthed and protected in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable state or territory electrical requirements. Confirm suitability before connecting medical or other critical equipment.
Applications
- Medical equipment and monitoring systems
- Alarm, security and surveillance systems
- Computers, servers and POS terminals
- Telecommunications and communications equipment
- Audio/visual and audio-processing systems
- Automatic gates and intercoms
- CAD/CAM workstations and multimedia systems
- Print, copy and cash-register equipment
- Test benches and service or data-storage systems
Standards & Compliance
- AS/NZS 3820:2009 – essential safety requirements framework for applicable low-voltage electrical equipment; product-specific conformity and RCM status should be confirmed
- AS/NZS 3000:2018 – applicable to the electrical installation, wiring, earthing and protection of the unit
Environmental Benefits
- High-efficiency operation can reduce energy losses and associated heat generation
- Voltage stabilisation may help extend the service life of connected electronic equipment, reducing premature replacement waste
- Longer equipment operating life can reduce electronic waste and resource consumption
Warranty Information
PSS Distributors standard warranty is a 2-year return-to-base warranty from the original purchase date, subject to proof of purchase, correct installation, authorised use and the applicable PSS warranty terms. Hardwired products may require commissioning by an approved PSS technician or contractor to maintain warranty validity.
Available Now
Available through PSS Distributors and authorised Australian distributors; contact the supplier for current stock status, pricing and lead time.
