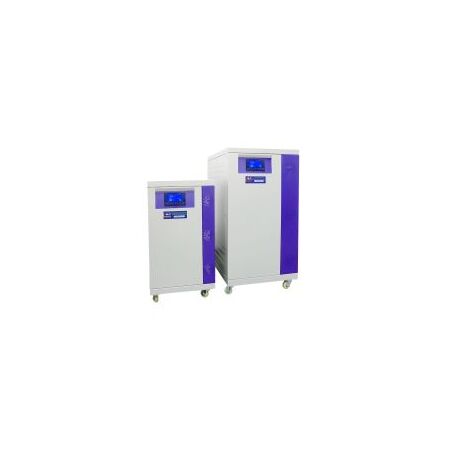

Power Conditioner 10kVA Three Phase AVR PSS

BRAND: CABAC
SKU: AVR3-10
$3,330.50 List price: $4,440.60
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
PSS three phase power conditioner features 10kVA rating, per-phase voltage regulation and surge protection. Ideal for industrial and medical loads.

Alternatively Known As: PSS AVR3-10, Three-Phase Automatic Voltage Regulator, Three-Phase Power Conditioner

Technical Specifications
  • Rated Capacity: 10kVA
  • Input Voltage: 380V three-phase
  • Input Voltage Range: 304–456V
  • Output Voltage: 380V ±2%
  • Voltage Tolerance: ±2%
  • Efficiency: ≥98%
  • Output Power Factor: 0.8
  • Response Time: <1 second
  • Regulation Speed: ≥25V/s
  • Phase Regulation: Independent regulation across three phases
  • Load Compatibility: Inductive and capacitive loads
  • Connections: Copper busbar terminals
  • Protection: Short circuit, overload, overvoltage, undervoltage, overcurrent, phase loss and phase reversal
  • Delay Time: Selectable; 3–5 seconds for output stabilisation
  • Cooling: Forced ventilation with fan
  • Display: LCD showing phase voltages, currents, operating status and fault information
  • Operating Temperature: 0–40°C
  • Maximum Operating Altitude: <3,000m
  • Humidity: 0–95% RH, non-condensing
  • Acoustic Noise: ≤60dB
  • Dimensions (H x L x W): 375mm x 723mm x 415mm
  • Weight: 41.5 kg
Key Features
  • Automatic voltage regulation for three-phase incoming power
  • Independent phase regulation for improved stability with uneven loads
  • Surge suppression for transient voltage protection
  • Protection against brownouts, overvoltage and electrical noise
  • Short-circuit and overload protection
  • Supports inductive and capacitive loads
  • High efficiency of at least 98%
  • Selectable output delay for connected equipment protection
  • LCD monitoring of phase voltage, current and fault conditions
  • Designed for industrial, medical and critical-infrastructure applications
Professional Installation Requirements
  • Hardwired three-phase equipment with copper busbar terminals. Installation, electrical connection and commissioning should be completed by a licensed electrician or suitably qualified power systems technician in accordance with the manufacturer’s instructions and applicable Australian wiring requirements. PSS warranty terms state that hardwired products require commissioning by an approved PSS technician or contractor. ([pssdistributors.com.au](https://www.pssdistributors.com.au/p/power-supplies-batteries/power-conditioners/avr3-10))
Applications
  • Industrial automation and PLC equipment
  • Medical imaging and diagnostic equipment
  • Data centres and server rooms
  • Mining and remote-site power systems
  • Telecommunications and networking hubs
  • Broadcast and security systems
  • Critical infrastructure
  • Commercial air-conditioning power distribution cabinets
Standards & Compliance
  • AS/NZS 3100:2022 — applicable general approval and test requirements for electrical equipment; specific product certification is not stated in the available product information. ([elecenghub.com](https://www.elecenghub.com/NewSamples/AS/157353144/AS-NZS-3100-2022-2.pdf))
  • AS/NZS 3820:2020 — applicable essential safety requirements framework for electrical equipment operating up to 1,000V AC; product-specific declaration is not stated in the available product information. ([standardsau.com](https://www.standardsau.com/preview/AS%20NZS%203820-2020.pdf))
  • AS/NZS 3000 — applicable to the electrical installation and connection of permanently wired three-phase equipment; installation compliance should be confirmed by the responsible electrician.
Environmental Benefits
  • High efficiency of at least 98% reduces electrical losses and operating heat
  • Stable voltage supply may help extend the service life of connected electrical and electronic equipment, reducing premature replacement waste
  • Suitable for critical equipment where improved power quality can reduce fault-related equipment waste and downtime
Warranty Information

PSS Distributors’ standard warranty is a 2-year return-to-base warranty from the original purchase date, subject to the published terms. Hardwired products must be commissioned by an approved PSS technician or contractor within the required period for warranty validity. ([pssdistributors.com.au](https://www.pssdistributors.com.au/ups-warranty/?utm_source=openai))

Available Now

Available through PSS Distributors and authorised Australian distribution channels. Contact the supplier for current stock or restock timing. ([pssdistributors.com.au](https://www.pssdistributors.com.au/p/power-supplies-batteries/power-conditioners/avr3-10))
