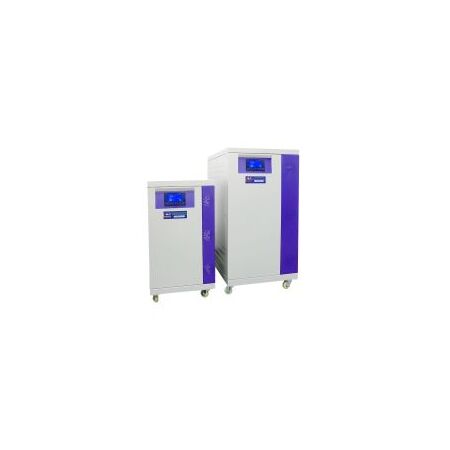

Power Conditioner 200kVA Three Phase AVR PSS

BRAND: CABAC
SKU: AVR3-200
$32,910.00 List price: $43,880.00
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
PSS three phase power conditioner features 200kVA rating, per-phase voltage regulation and surge protection. Ideal for industrial and medical loads.

Alternatively Known As: Three-Phase Automatic Voltage Regulator, AVR3-200, Industrial Power Conditioner, Voltage Stabiliser

Technical Specifications
  • Rated Capacity: 200 kVA
  • System Type: Three-phase automatic voltage regulator and power conditioner
  • Voltage Regulation: ±2%
  • Efficiency: ≥98%
  • Power Factor: 0.95 to 1.0
  • Load Compatibility: Inductive and capacitive loads
  • Protection: Surge suppression, short-circuit protection and overload protection
  • Phase Regulation: Independent phase regulation with phase balancing
  • Delay Time: Selectable
  • Operating Environment: Dry, clean and well-ventilated indoor installation recommended
  • Reference Model: AVR3-200
  • Dimensions (H x L x W): 1550mm x 1350mm x 850mm
  • Weight: 680 kg
Key Features
  • Stabilises incoming voltage across all three phases
  • Provides independent per-phase voltage regulation
  • Protects connected equipment from brownouts, overvoltage, surges and electrical noise
  • Supports industrial, medical, data-centre, mining, telecommunications and critical infrastructure loads
  • Suitable for inductive and capacitive loads
  • High operating efficiency helps reduce heat loss
  • Selectable delay function for connected-equipment protection
  • Cabinet design requires adequate airflow and maintenance clearance
Professional Installation Requirements
  • Hardwired installation must be performed by a suitably qualified and registered electrician. Installation should follow the manufacturer's instructions, AS/NZS 3000 and AS/NZS 3008, with suitable isolation, cable sizing, earthing, protection and commissioning. PSS states that hardwired products must be commissioned by an approved PSS technician or contractor for warranty validity. ([cabac.com.au](https://www.cabac.com.au/amfile/file/download/file/156931/product/176605/?utm_source=openai))
Applications
  • Industrial automation and PLC equipment
  • Hospital imaging and diagnostic equipment
  • Data centres and server rooms
  • Mining sites with unstable mains supplies
  • Telecommunications and networking hubs
  • Broadcasting facilities
  • Airport security and surveillance systems
  • Commercial air-conditioning power distribution cabinets
Standards & Compliance
  • Installation reference: AS/NZS 3000 Wiring Rules
  • Installation reference: AS/NZS 3008 for cable selection and voltage-drop considerations
Environmental Benefits
  • High efficiency of at least 98% can reduce operating losses and associated heat generation
  • Voltage stabilisation can help reduce stress on connected equipment and extend service life
  • A durable industrial cabinet and serviceable design can reduce replacement frequency and equipment waste
Warranty Information

PSS standard warranty: 2-year return-to-base warranty from the original purchase date, subject to the manufacturer's conditions. PSS states that hardwired products must be commissioned by an approved PSS technician or contractor within four weeks of invoicing for warranty validity. ([pssdistributors.com.au](https://www.pssdistributors.com.au/ups-warranty/))

Available Now

Available through PSS and authorised Australian distributors; confirm current availability and lead time before ordering. ([mssdatasolutions.com.au](https://www.mssdatasolutions.com.au/p/power-supplies-batteries/power-conditioners/avr3-200))
