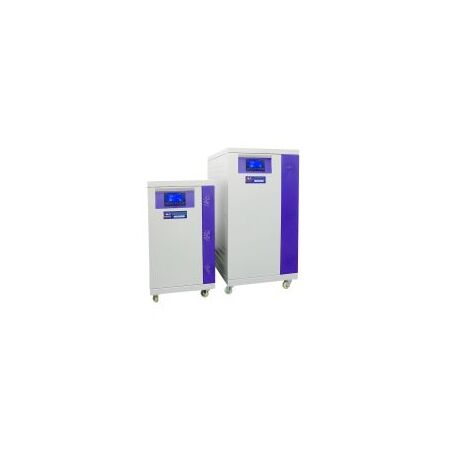

Power Conditioner 20kVA Three Phase AVR PSS

BRAND: CABAC
SKU: AVR3-20
$5,179.50 List price: $6,906.00
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
PSS three phase power conditioner features 20kVA rating, per-phase voltage regulation and surge protection. Ideal for industrial and medical loads.

Alternatively Known As: AVR3-20, Three-Phase Automatic Voltage Regulator, Three-Phase Power Stabiliser

Technical Specifications
  • Model: AVR3-20
  • Rated Capacity: 20kVA
  • Phase Configuration: Three phase
  • Voltage Regulation: ±2%
  • Efficiency: ≥98%
  • Power Factor: 0.95 to 1.0
  • Load Compatibility: Inductive and capacitive loads
  • Protection: Surge suppression, short-circuit and overload protection
  • Phase Control: Independent phase regulation and phase balancing
  • Delay Function: Selectable delay time
  • Nominal Output Capacity: 16kW
  • Dimensions (H x L x W): 1025mm x 575mm x 495mm
  • Weight: 95 kg
Key Features
  • Automatic voltage regulation across all three phases
  • Independent phase regulation for improved voltage stability
  • Surge suppression for transient protection
  • Short-circuit and overload protection
  • Supports inductive and capacitive loads
  • High efficiency of at least 98%
  • Selectable output delay time
  • Suitable for industrial, medical, data centre, mining and critical infrastructure applications
Professional Installation Requirements
  • Hardwired three-phase equipment of this capacity must be installed, tested and commissioned by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Confirm site supply, protection, ventilation, clearances and load compatibility before commissioning.
Applications
  • Industrial automation and PLC equipment
  • Medical imaging and diagnostic equipment
  • Data centres and server rooms
  • Mining and process-control installations
  • Telecommunications and networking hubs
  • Broadcast and security systems
  • Commercial air-conditioning power distribution cabinets
Standards & Compliance
  • AS/NZS 3820:2020 – relevant general essential safety requirements for low-voltage electrical equipment; confirm product-specific evidence with PSS
  • AS/NZS 3000:2018 – applicable requirements for electrical installation and hardwired connection
Environmental Benefits
  • High efficiency of at least 98% helps reduce electrical losses and operating heat
  • Voltage stabilisation can reduce stress on connected equipment and extend service life
  • Protecting voltage-sensitive equipment may reduce premature replacement and electronic waste
Warranty Information

PSS standard warranty: 2-year return-to-base warranty from the original purchase date, subject to the manufacturer's terms. Hardwired products must be commissioned by an approved and authorised PSS technician or contractor for warranty validity.

Available Now

Available through PSS Distributors and authorised Australian distributors. Contact PSS for current stock availability, quotation and lead time.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
