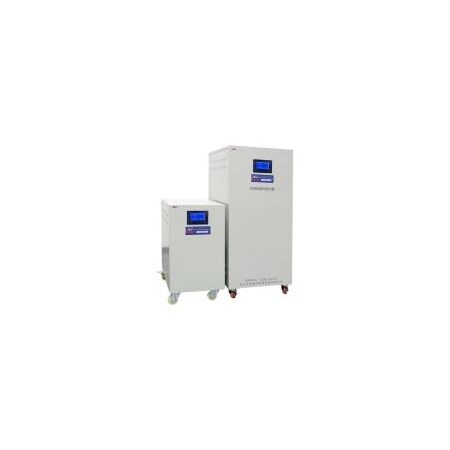

Power Conditioner 2kVA Single Phase AVR PSS

BRAND: CABAC
SKU: AVR1-2
$669.20 List price: $892.30
+ −
30 Days Return Electricians Unlock Trade Access
PSS single phase power conditioner features 2kVA rating, automatic voltage regulation and brownout and surge protection. Ideal for medical and alarm equipment.

Alternatively Known As: Automatic Voltage Regulator, AVR Power Conditioner, Single-Phase Voltage Stabiliser, Power Line Conditioner

Technical Specifications
  • Model: AVR1-2
  • Rated Capacity: 2kVA
  • Active Power Capacity: 1.6kW
  • Input: 230V AC ±15%
  • Input Frequency: 47–63Hz
  • Output Voltage: 230V AC ±5%
  • Input and Output Connection: 10A plug-and-play
  • Efficiency: Up to 98%
  • Input Power Factor: 0.95–1.0
  • Response Time: 3–7ms
  • Overload Capacity: 150% for 10 seconds
  • Delay Output: Selectable delay time
  • Display: LCD voltage and operating status display
  • Dimensions (H x L x W): 340mm x 280mm x 305mm
  • Weight: 7.9 kg
Key Features
  • Automatic voltage regulation for unstable supply conditions
  • Protection against brownouts, overvoltage and voltage surges
  • Overload and short-circuit protection with circuit-breaker protection
  • High-energy surge absorber for transient protection
  • Selectable output delay to stabilise voltage before connection
  • Suitable for inductive and capacitive loads
  • High-efficiency thermal design to minimise operating losses
  • Plug-and-play single-phase connection
Professional Installation Requirements
  • The AVR1-2 uses plug-and-play connections, but connection and commissioning of mains-voltage equipment should be completed by a licensed electrician where required by local regulations. Confirm suitability before connecting medical or other critical equipment.
Applications
  • Medical equipment and monitoring systems
  • Alarm and security systems
  • CCTV, surveillance and access-control equipment
  • Computers, small servers and point-of-sale terminals
  • Telephone and communication systems
  • Audio-visual and multimedia equipment
  • CAD/CAM workstations
  • Cash registers, printers and copy equipment
  • Test benches and data-storage systems
Standards & Compliance
  • AS/NZS 3100:2022 general requirements for electrical equipment may apply; confirm the product-specific approval and RCM documentation with PSS before installation
Environmental Benefits
  • High efficiency of up to 98% helps reduce electrical losses and operating heat
  • Voltage conditioning can help protect connected equipment and extend service life, reducing premature replacement waste
  • No refrigerant or battery system is used in the power conditioner
Warranty Information

PSS standard warranty is a 2-year return-to-base warranty from the original purchase date, subject to proof of purchase, correct installation, operating conditions and the manufacturer's warranty terms.

Available Now

Available through PSS Distributors and authorised Australian distributors; contact the supplier to confirm current stock and lead time.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
