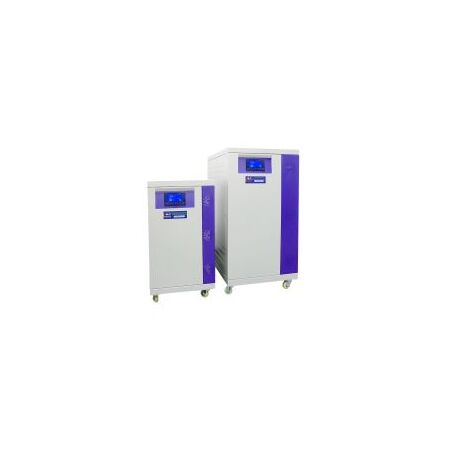

Power Conditioner 30kVA Three Phase AVR PSS
PSS three phase power conditioner features 30kVA rating, per-phase voltage regulation and surge protection. Ideal for industrial and medical loads.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 30kVA Three-Phase Automatic Voltage Regulator, Three-Phase Voltage Stabiliser, Industrial Power Conditioner
Technical Specifications
- Model: AVR3-30
- Rated Capacity: 30kVA
- System Type: Three-phase automatic voltage regulator and power conditioner
- Voltage Regulation: ±2%
- Efficiency: ≥98%
- Power Factor: 0.95 to 1.0
- Load Compatibility: Inductive and capacitive loads
- Protection: Surge suppression, short-circuit protection and overload protection
- Phase Regulation: Independent phase regulation with phase balancing
- Delay Time: Selectable
- Installation Type: Permanently wired electrical equipment
- Dimensions (H x L x W): 1110mm x 570mm x 500mm
- Weight: 165 kg
Key Features
- 30kVA three-phase capacity for industrial and critical electrical loads
- Independent regulation across each phase
- Automatic correction of under-voltage and over-voltage conditions
- Surge suppression for transient voltage protection
- Supports inductive and capacitive loads
- Short-circuit and overload protection
- Selectable output delay for connected equipment protection
- High efficiency of at least 98%
- Suitable for industrial, medical, mining, IT and critical infrastructure applications
Professional Installation Requirements
- Installation and commissioning should be carried out by a licensed electrician or suitably qualified electrical contractor in accordance with the manufacturer’s instructions and AS/NZS 3000. As a hardwired PSS product, commissioning by an approved PSS technician or contractor may be required to maintain warranty coverage.
Applications
- Industrial automation and PLC equipment
- Medical imaging and diagnostic equipment
- Data centres and server rooms
- Mining and remote sites with unstable mains supply
- Telecommunications and networking infrastructure
- Broadcasting equipment
- Airport security and surveillance systems
- Commercial air-conditioning power distribution cabinets
Standards & Compliance
- AS/NZS 3000:2018 Electrical installations for fixed hardwired installation requirements
- AS/NZS 3100:2022 General requirements for electrical equipment where applicable
- AS/NZS 3820 Essential safety requirements for low-voltage electrical equipment where applicable
Environmental Benefits
- High operating efficiency of at least 98% helps minimise heat losses and associated energy consumption
- Voltage stabilisation can reduce stress on connected equipment and extend service life, reducing replacement waste
- Surge and overload protection may help prevent premature failure of connected electrical equipment
Warranty Information
PSS standard warranty is a 2-year return-to-base warranty from the original purchase date, subject to PSS terms and conditions. Hardwired products must be commissioned by an approved PSS technician or contractor within the specified period to preserve warranty coverage.
Available Now
Available through PSS and authorised Australian distributors; contact the distributor to confirm current stock and lead time.
