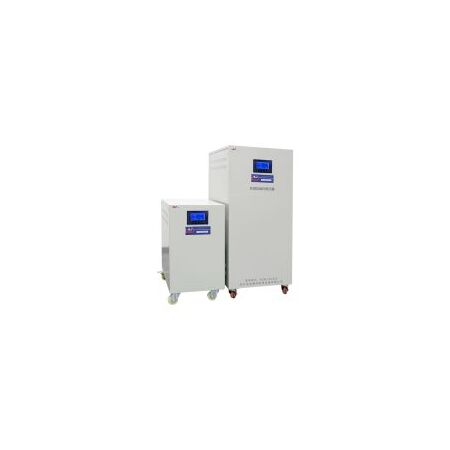

Power Conditioner 5kVA Single Phase AVR PSS

BRAND: CABAC
SKU: AVR1-5
$1,129.70 List price: $1,506.30
+ −
30 Days Return Electricians Unlock Trade Access
PSS single phase power conditioner features 5kVA rating, automatic voltage regulation and brownout and surge protection. Ideal for medical and alarm equipment.

Alternatively Known As: 5kVA Automatic Voltage Regulator, Single-Phase Power Conditioner, AVR Power Conditioner

Technical Specifications
  • Model: AVR1-5
  • Capacity: 5kVA
  • Output Power: 4kW
  • Phase: Single phase
  • Input Voltage: 230V ±15%
  • Output Voltage: 230V ±5%
  • Input Connection: Hardwired
  • Output Connection: Hardwired
  • Protection: Brownout, overvoltage, surge, overload and short-circuit protection
  • Delay Function: Selectable delay time
  • Load Compatibility: Inductive and capacitive loads
  • Efficiency: Up to 98%
  • Dimensions (H x L x W): 445mm x 280mm x 305mm
  • Weight: 20.8 kg
Key Features
  • Automatic voltage regulation for stabilised output voltage
  • Protects connected equipment from brownouts, overvoltage and power surges
  • Overload and short-circuit protection
  • Selectable output delay to reduce nuisance triggering during minor interruptions
  • Suitable for sensitive and mission-critical electronic equipment
  • Supports inductive and capacitive loads
  • High-efficiency thermal design to minimise power losses
  • Hardwired input and output connections
Professional Installation Requirements
  • Hardwired mains equipment must be installed and commissioned by a licensed electrician in accordance with the manufacturer’s instructions and AS/NZS 3000. Confirm the connected load, circuit protection, earthing and isolation requirements before installation.
Applications
  • Medical equipment and monitoring systems
  • Alarm and security systems
  • CCTV and surveillance systems
  • Computers, small servers and POS terminals
  • Telephone and communications systems
  • CAD/CAM workstations and multimedia equipment
  • Audio processing equipment
  • Test benches and data storage systems
  • Print, copy and cash-register equipment
Standards & Compliance
  • AS/NZS 3000: Electrical installations — applicable to hardwired mains installation
  • AS/NZS 3820: Essential safety requirements for electrical equipment — relevant safety framework for in-scope electrical equipment
Environmental Benefits
  • Up to 98% efficiency helps reduce energy losses during operation
  • Voltage stabilisation can reduce stress on connected equipment and extend service life
  • Protection against electrical faults may reduce premature equipment replacement and associated electronic waste
Warranty Information

PSS standard warranty is a 2-year return-to-base warranty from the original purchase date, subject to PSS warranty terms and conditions. Transportation to the service base is generally excluded.

Available Now

Available through PSS Distributors and authorised Australian distributors; confirm current stock and lead time with the supplier.
