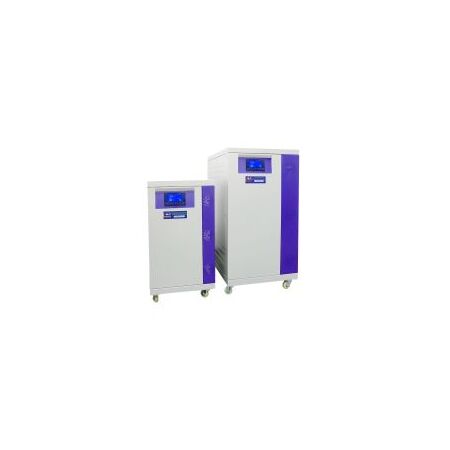

Power Conditioner 80kVA Three Phase AVR PSS

BRAND: CABAC
SKU: AVR3-80
$10,566.30 List price: $14,088.40
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
PSS three phase power conditioner features 80kVA rating, per-phase voltage regulation and surge protection. Ideal for industrial and medical loads.

Alternatively Known As: PSS AVR3-80 Automatic Voltage Regulator, Three-Phase AVR, Industrial Power Conditioner

Technical Specifications
  • Rated Capacity: 80 kVA
  • Active Power Capacity: 64 kW at unity power factor
  • Input Voltage: 400 V ±20%
  • Output Voltage: 400 V ±2%
  • Phase Configuration: Three phase, neutral and earth
  • Frequency: 50 Hz
  • Voltage Regulation Accuracy: 2%
  • Efficiency: Greater than 98%
  • Power Factor: 0.8
  • Output Current: 116 A per phase at 0.8 power factor, 230 V phase-to-neutral
  • Response Time: Less than 1 second
  • Overload Capacity: 150% for 10 seconds; 120% for 60 minutes
  • Protection: Over-voltage, under-voltage, phase failure, overload, over-current and short circuit
  • Bypass: Manual bypass
  • Waveform Distortion: No additional waveform distortion
  • Insulation Class: Class H, 180°C
  • Cooling: Forced ventilation with fan
  • Operating Temperature: 0°C to 45°C
  • Relative Humidity: 0% to 90%, non-condensing
  • Maximum Installation Altitude: Below 1,000 m
  • Dimensions (H x L x W): 1100mm x 850mm x 660mm
  • Weight: 400 kg
Key Features
  • Independent per-phase voltage regulation
  • Transient voltage surge and spike suppression
  • Protection against voltage fluctuations and line disturbances
  • Manual bypass for maintenance or unprotected supply operation
  • Suitable for industrial, commercial and medical electrical loads
  • LCD control and monitoring interface
  • Designed for continuous-duty power conditioning
  • No additional output waveform distortion
Professional Installation Requirements
  • Hardwired installation must be performed by a suitably registered and trained electrician. Install, cable and commission the unit in accordance with the manufacturer’s instructions, AS/NZS 3000, AS/NZS 3008 and applicable site electrical requirements.
Applications
  • Industrial machinery and production lines
  • Medical equipment and monitoring systems
  • Process control systems
  • Computers, data storage and communications equipment
  • CAD/CAM, printing and automated test equipment
  • Commercial buildings requiring three-phase voltage stabilisation
Standards & Compliance
  • Installation and cable selection: AS/NZS 3000 and AS/NZS 3008
Environmental Benefits
  • Greater than 98% efficiency can reduce energy losses during operation
  • Voltage regulation can help reduce stress on connected equipment and extend service life
  • Durable cabinet-mounted construction can reduce replacement frequency and associated waste
Warranty Information

Standard PSS warranty: 2-year return-to-base warranty from the original purchase date, subject to PSS terms and conditions. Hardwired products require approved commissioning to maintain warranty validity.

Available Now

Available through PSS Distributors and authorised Australian distributors; confirm current project availability and lead time before ordering.
