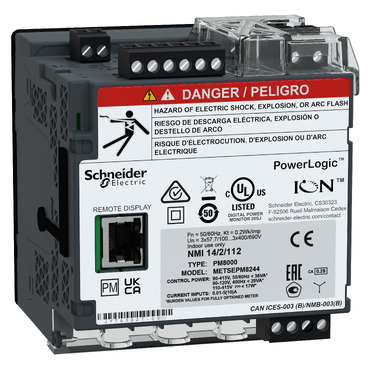

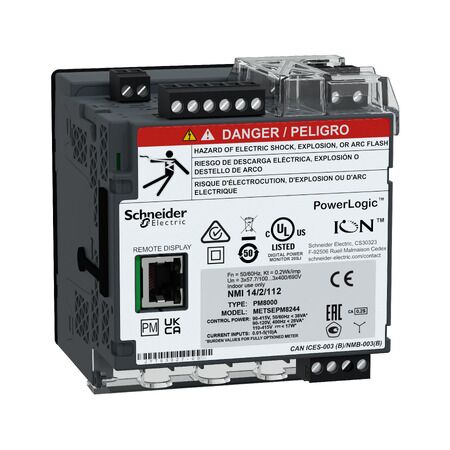

Power & Energy Meter PM8244 | Class 0.2S Accuracy | DIN Rail Mountable | Remote LCD Display | @1 | by Clipsal
The PM8244 Power & Energy Meter is designed for high-accuracy energy metering with a Class 0.2S rating, making it ideal for commercial and industrial energy management. Its DIN rail mountable design allows for easy installation, while the remote LCD display offers flexible monitoring. With advanced power quality analysis and multiple communication protocols, this meter is perfect for electrical distribution monitoring and sub-metering applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Power & Energy Meter PM8244 | Class 0.2S Accuracy | DIN Rail Mountable | Remote LCD Display | @1 | by Clipsal
Brand: Clipsal
SKU: SCHMETSEPM8244
Alternatively Known As: PowerLogic PM8244, Schneider PM8244, PM8244 Energy Meter, PM8244 Power Meter, PM8244 DIN Rail Meter
Technical Specifications
- Accuracy: Class 0.2S (IEC 62053-22)
- Mounting: DIN rail
- Display: Remote LCD display
- Voltage Range: 57-400 V AC (phase to neutral), 100-690 V AC (phase to phase)
- Current Input: 1A/5A via CTs
- Frequency: 45-65 Hz
- Communication: Modbus RTU, Modbus TCP, Ethernet, RS485
- Data Logging: Onboard memory for event and trend recording
- Power Quality: Harmonics up to 63rd, waveform capture, event logging
- Expandable I/O: Digital and analog inputs/outputs
- Dimensions (H x L x W): 90mm x 70mm x 105mm
- Weight: 0.7 kg
Key Features
- High-accuracy Class 0.2S energy metering
- DIN rail mountable for easy installation
- Remote display for flexible monitoring
- Advanced power quality analysis including harmonics and waveform capture
- Multiple communication protocols: Modbus, Ethernet, RS485
- Onboard data logging and event recording
- Expandable I/O for additional monitoring needs
Professional Installation Requirements
- Installation must be performed by a licensed electrician familiar with energy metering and electrical distribution systems.
Applications
- Commercial and industrial energy management
- Electrical distribution monitoring
- Sub-metering for cost allocation
- Power quality analysis in large facilities
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy efficiency by providing detailed consumption data
- Supports reduction of energy waste through advanced monitoring
- Assists in compliance with energy management standards
Warranty Information
2 years manufacturer warranty against defects.
Available Now
The Clipsal PowerLogic PM8244 Power & Energy Meter with Remote Display is available for immediate purchase. Ideal for commercial and industrial energy management applications.
