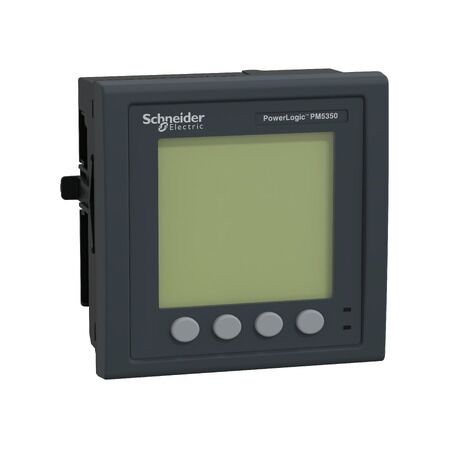

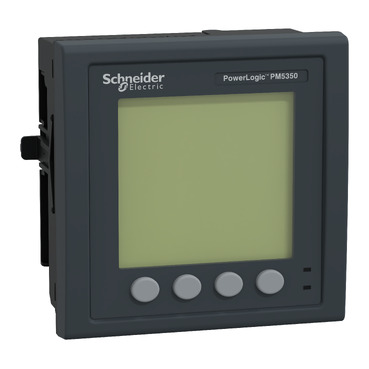

Power Meter | Class 0.2S Accuracy | Multi-Measurement Capabilities | Large Backlit LCD | @Pack of 1 | by Clipsal
The Power Meter by Clipsal offers high-accuracy Class 0.2S energy metering with multi-measurement capabilities including voltage, current, power, and frequency. Ideal for commercial and industrial applications, it features a large backlit LCD for easy reading and onboard data logging for historical analysis. Perfect for energy management and monitoring in various settings, this meter ensures compliance with energy management standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Power Meter | Class 0.2S Accuracy | Multi-Measurement Capabilities | Large Backlit LCD | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMETSEPM5350
Alternatively Known As: Schneider Electric PM5350, PowerLogic PM5350, Clipsal Energy Meter, Digital Power Meter, Multifunction Power Meter
Technical Specifications
- Accuracy: Class 0.2S (IEC 62053-22)
- Voltage Measurement: 57-277 V L-N / 100-480 V L-L
- Current Measurement: 1A/5A nominal (up to 10A max)
- Frequency: 45–65 Hz
- Display: Backlit LCD, 4 lines
- Communication: Modbus RTU, Modbus TCP, Ethernet, RS485
- Data Logging: Onboard memory for historical data and events
- Mounting: DIN rail or panel mount
- Power Supply: 100-415 V AC / 125-250 V DC
- Dimensions (H x L x W): 96mm x 80mm x 96mm
- Weight: 0.7 kg
Key Features
- High-accuracy Class 0.2S energy metering
- Multi-measurement: voltage, current, power, energy, frequency, power factor
- Large backlit LCD display for easy reading
- Onboard data logging and event recording
- Modbus, Ethernet, and serial communication options
- Expandable I/O for alarms and pulse outputs
- DIN rail or panel mounting flexibility
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Commercial buildings: energy management and monitoring
- Industrial facilities: load analysis and power quality monitoring
- Data centers: real-time energy usage tracking
- Utility substations: advanced metering infrastructure
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy efficiency by providing detailed consumption data
- Supports load optimization and demand reduction
- Facilitates compliance with energy management standards
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Power Meter SCHMETSEPM5350 is available for immediate purchase. Ideal for commercial, industrial, and utility energy monitoring applications.
