Power Relay Flange Mount 16A | 2 Changeover | 240V AC Coil by NHP
Power relay with 16A nominal current and 2 changeover contacts—ideal for industrial automation and commercial HVAC systems. Built for high electrical life, with flange mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

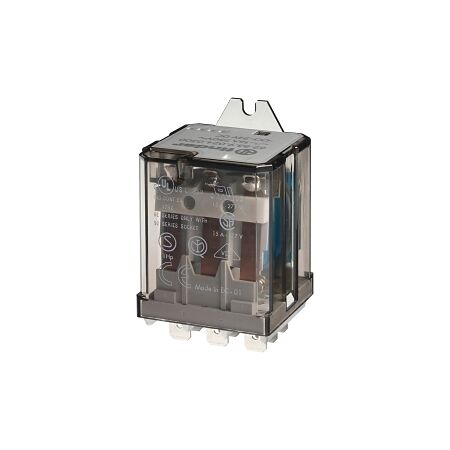

Product Name/Title: Finder 62 Series Power Relay Flange Mount 16A 2 Changeover 240V AC Coil
Brand: NHP
SKU: 62820000240VAC
Alternatively Known As: Power Relay, Switching Relay, Flange Mount Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Rated Switching Power at AC 1: 4000 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Material of Contact: Silver cadmium-oxide
- Dimensions (H x L x W): 36mm x 68mm x 38mm
- Weight: 0.5 kg
Key Features
- 16A nominal current with 2 changeover contacts.
- Flange mounting design for easy installation.
- High electrical life rated for 100,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical loads
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 62 Series Power Relay Flange Mount 16A 2 Changeover 240V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
