Power Relay Flange Mount 16A 3CO | 240V AC Coil | LED Indication by NHP
Power relay with 16A nominal current and 3 changeover contacts—ideal for industrial automation and commercial HVAC systems. Built for durability, with LED indication and flange mounting for easy installation.
Sign in
Please login to continue to your account.

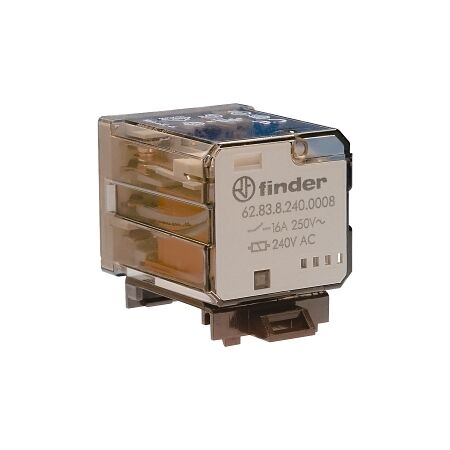

Product Name/Title: Finder 62 Series Power Relay Flange Mount 16A 3CO 240V AC Coil with Pushbutton and Mechanical Ind
Brand: NHP
SKU: 62830000240VAC
Alternatively Known As: Power Relay, Flange Mount Relay, 16A Relay
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Rated Switching Power at AC 1: 4000 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Material of Contact: Silver cadmium-oxide
- Dimensions (H x L x W): 36mm x 68mm x 38mm
- Weight: 0.5 kg
- 16A nominal current with 3 changeover contacts.
- LED indication for operational status.
- Suitable for flange mounting.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- Complies with AS/NZS 3000 for electrical installation safety.
- Durable design reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Finder 62 Series Power Relay Flange Mount 16A 3CO 240V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
