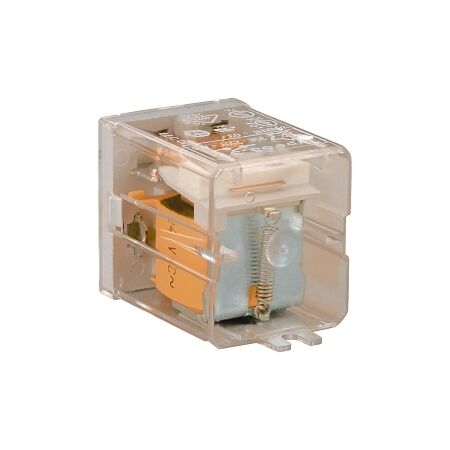

Power Relay Flange Mount 20A | 60V AC Coil | 1NO 1NC Contacts by NHP
Power relay with flange mount design, rated for 20A and 60V AC coil—ideal for industrial automation and commercial HVAC systems. Built for reliability, with 1NO and 1NC contacts and high electrical life of 80,000 cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 65 Series Power Relay Flange Mount 20A 60V AC Coil 1NO 1NC Contacts
Brand: NHP
SKU: 653160VAC
Alternatively Known As: Power Relay, Flange Mount Relay, 20A Relay, AC Relay
Technical Specifications
- Nominal Current: 20 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Number of Contacts: 1NO, 1NC
- Rated Switching Power at AC 1: 5000 VA
- Rated Switching Power at AC 15 230 V: 1000 VA
- Electrical Life: 80,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 75 °C
- Material of Contact: Silver cadmium-oxide
- Dimensions (H x L x W): 36.5mm x 57.2mm x 32.2mm
- Weight: 0.2 kg
Key Features
- Flange mount design for easy installation.
- Rated for 20A and 60V AC coil with 1NO and 1NC contacts.
- High electrical life of 80,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical loads
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 65 Series Power Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
