Power Relay Flange Mount 20A | 6V AC Coil | 1NO 1NC Contacts by NHP
Power relay with 20A nominal current and 6V AC coil—ideal for industrial automation and commercial HVAC systems. Built for durability, with flange mount design for easy installation and wide operating temperature range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

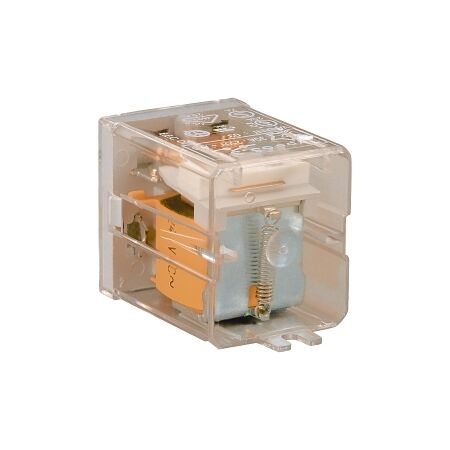

Product Name/Title: Finder 65 Series Power Relay Flange Mount 20A 6V AC Coil 1NO 1NC Contacts
Brand: NHP
SKU: 65316VAC
Alternatively Known As: Power Relay, Flange Mount Relay, 20A Relay
Technical Specifications
- Nominal Current: 20 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Rated Switching Power at AC 1: 5000 VA
- Rated Switching Power at AC 15 (230 V): 1000 VA
- Electrical Life: 80000 cycles
- Mechanical Life: 10000000 cycles
- Control Supply Voltage: 6 V AC
- Material of Contact: Silver cadmium-oxide
- Drive Switching Attitude: Mono stable
- Dimensions (H x L x W): 37mm x 57mm x 32mm
- Weight: 0.5 kg
Key Features
- 20A nominal current with 1NO and 1NC contacts.
- Flange mount design for easy installation.
- Wide operating temperature range from -40 to 75 °C.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 65 Series Power Relay Flange Mount 20A 6V AC Coil 1NO 1NC Contacts is available now for immediate purchase. Ideal for industrial and commercial applications.
