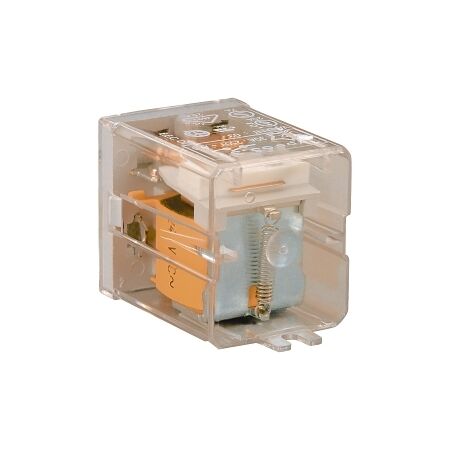

Power Relay Flange Mount 20A | 6V DC Coil | 1NO 1NC Contacts by NHP
Power relay with 20A nominal current and 6V DC coil—ideal for industrial automation and commercial HVAC systems. Built for reliable switching, with 1NO and 1NC contact configuration and flange mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 65 Series Power Relay Flange Mount 20A 6V DC Coil 1NO 1NC Contacts
Brand: NHP
SKU: 65316VDC
Alternatively Known As: Power Relay, Flange Mount Relay, 20A Relay
Technical Specifications
- Nominal Current: 20 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Rated Switching Power at AC-1: 5000 VA
- Rated Switching Power at AC-15 (230 V): 1000 VA
- Electrical Life: 80,000 cycles
- Mechanical Life: 30,000,000 cycles
- Operating Temperature: -40 to 75 °C
- Material of Contact: Silver cadmium-oxide
- Dimensions (H x L x W): 37mm x 57mm x 32mm
- Weight: 0.2 kg
Key Features
- 20A nominal current with 6V DC coil.
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration.
- Suitable for flange mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical loads
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design ensures long operational life, reducing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 65 Series Power Relay Flange Mount 20A 6V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
