Power Relay Flange Mount 30A | 24V DC Coil | High Electrical Life by NHP
Power relay with 30A nominal current and 24V DC coil—ideal for industrial automation and control panels. Built for reliability, with flange mounting and 80,000 cycles electrical life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

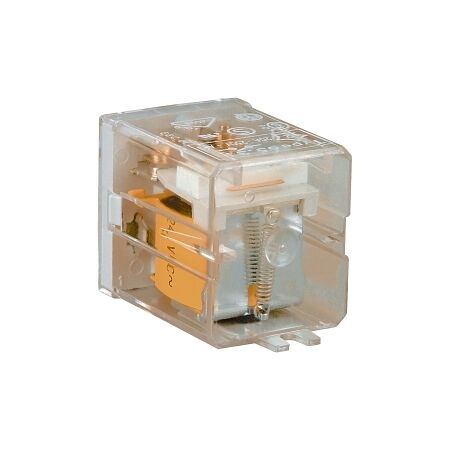

Product Name/Title: Finder 65 Series Power Relay Flange Mount 30A 24V DC Coil 1 NO Contact
Brand: NHP
SKU: 6531M24VDC
Alternatively Known As: Power Relay, Flange Mount Relay, 30A Relay
Technical Specifications
- Nominal Current: 30 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Number of Contacts: 1 NO
- Rated Switching Power at AC-1: 7500 VA
- Rated Switching Power at AC-15 (230 V): 1250 VA
- Breaking Capacity at DC-1 (30 V): 30 A
- Control Supply Voltage (US) at DC: 24 V
- Electrical Life: 80,000 cycles
- Mechanical Life: 30,000,000 cycles
- Operating Temperature: -40 to 75 °C
- Dimensions (H x L x W): 37mm x 57mm x 32mm
- Weight: 0.5 kg
Key Features
- 30A nominal current with a 24V DC coil.
- Suitable for flange mounting.
- High electrical life of 80,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical loads
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 65 Series Power Relay Flange Mount 30A 24V DC Coil 1 NO Contact is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
