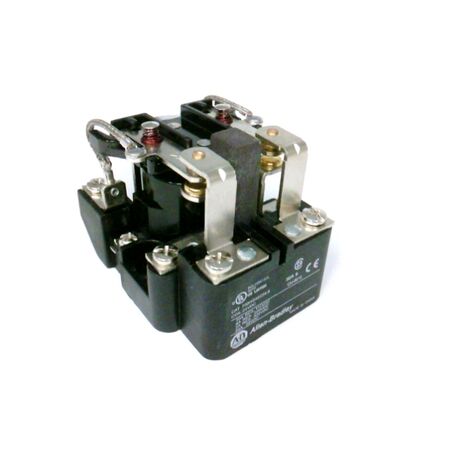

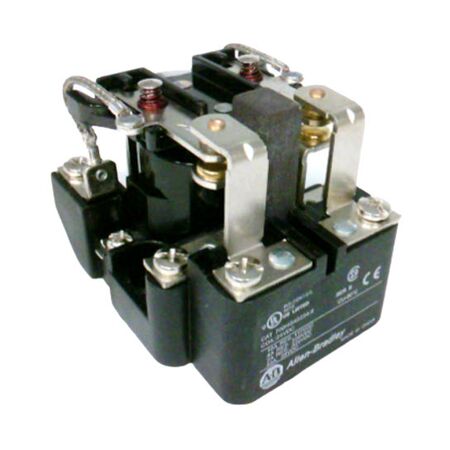

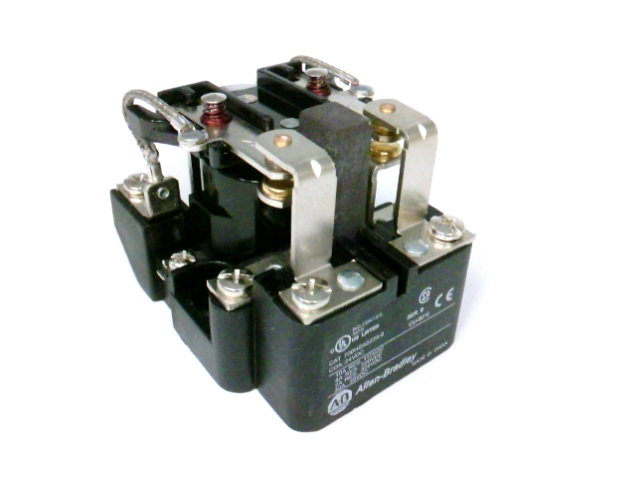

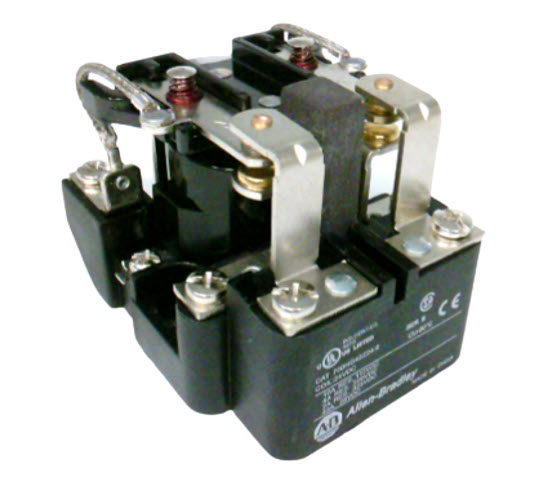

Power Relay Panel Mounted 24 VDC | 40 Amp Contact Rating | 2 Pole Double Throw | by Allen-Bradley
The Power Relay Panel Mounted 24 VDC is designed for reliable electrical switching in industrial control panels and automation systems. With a robust 40 amp contact rating and a 2 pole double throw configuration, this relay ensures efficient operation and safety. Ideal for machinery control, it features screw terminals for easy installation and a magnetic blowout for arc suppression.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Rating: 40 Amp
- Frequency: 50/60 Hz
- Coil Voltage: 24 VDC
- Poles: 2 Pole Double Throw
- Mounting: Panel Mounted
- Terminals: Screw Terminals
- Magnetic Blowout: Yes
- Style: Open Style
- Dimensions (H x L x W): 60mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Panel mounted design with screw terminals
- 40 amp contact rating
- 2 pole double throw configuration
- Magnetic blowout for arc suppression
- Open style mountable relay
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper mounting and electrical connections.
Applications
- Industrial control panels
- Automation systems
- Electrical switching applications
- Machinery control
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Efficient electrical switching reduces energy loss
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HG42Z246 Power Relay is available now for immediate purchase. Ideal for industrial and automation control panel applications.
