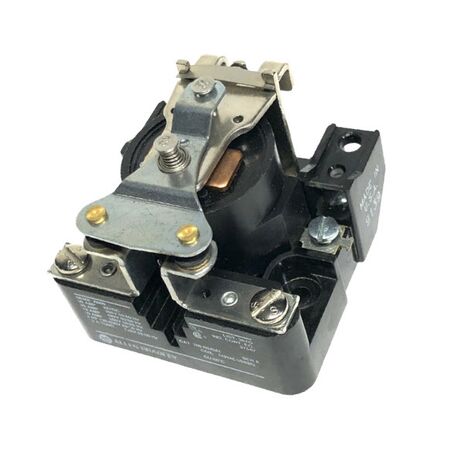

Power Relay Panel Mounted | 40 A Contact Rating | 120 V AC Coil Voltage | Magnetic Blowout | by Allen-Bradley
The Power Relay Panel Mounted by Allen-Bradley features a robust 40 A contact rating and operates at 120 V AC, making it ideal for industrial control panels and automation systems. With a 1 pole single throw configuration and magnetic blowout for arc suppression, this relay ensures reliable performance in electrical switching applications. Designed for professional installation, it meets AS/NZS 3000 standards for safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Rating: 40 A
- Coil Voltage: 120 V AC
- Frequency: 50/60 Hz
- Pole Configuration: 1 Pole Single Throw
- Mounting Type: Panel Mounted
- Terminal Type: Screw Terminals
- Magnetic Blowout for arc suppression
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.3 kg
Key Features
- Panel mounted design with screw terminals
- 40 A contact rating
- 1 pole single throw configuration
- Magnetic blowout for arc suppression
- Operates at 50/60 Hz frequency
- 120 V AC coil voltage
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control panels
- Automation systems
- Electrical switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HG45A16 Power Relay is available now for immediate purchase, ideal for industrial and automation control panel applications.
