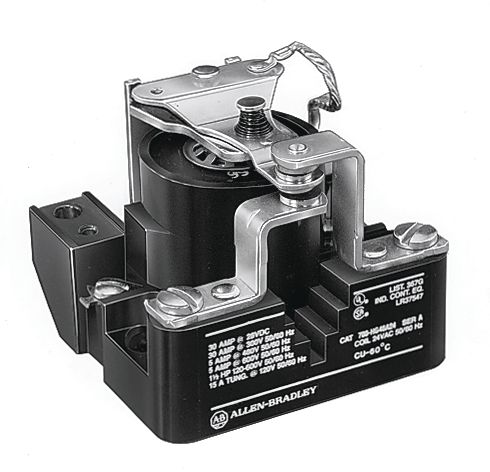

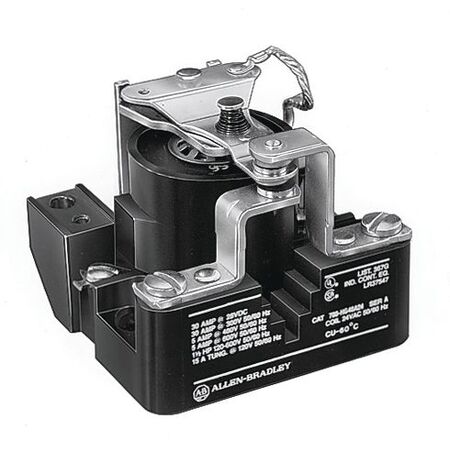

Power Relay Panel Mounted | 40A Contact Rating | SPDT Configuration | Magnetic Blowout | by Allen-Bradley
The Power Relay Panel Mounted by Allen-Bradley features a robust 40A contact rating and a 1 pole double throw (SPDT) configuration, making it ideal for industrial control panels and automation systems. Designed for 24V DC operation at 50/60 Hz, this relay ensures reliable electrical switching with screw terminal connections and magnetic blowout for arc suppression, perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Rating: 40 A
- Pole Configuration: 1 Pole Double Throw (SPDT)
- Voltage: 24 V DC
- Frequency: 50/60 Hz
- Mounting Type: Panel mounted
- Terminal Type: Screw terminals
- Magnetic blowout for arc suppression
- Dimensions (H x L x W): 60mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Panel mounted power relay
- Screw terminal connections
- 40 A contact rating
- 1 pole double throw configuration
- Magnetic blowout for arc suppression
- Operates at 24 V DC, 50/60 Hz
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control panels
- Automation systems
- Electrical switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
Warranty Information
Factory warranty does not apply. Radwell 2-year warranty included.
Available Now
The Allen-Bradley 700HG46Z246 Power Relay is available now for immediate purchase. Ideal for industrial and automation control panel applications.
