Power Relay Plug-in 16A 2CO | 24V DC Coil | Pushbutton & Indicator by NHP
Power relay with 16A nominal current and 24V DC coil—ideal for automation and control panels. Built for reliability, with a mechanical indicator and plug-in connection for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

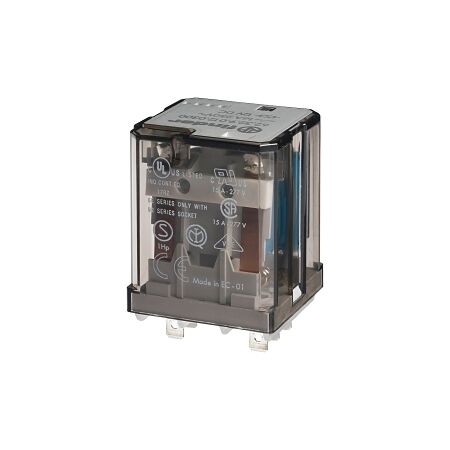

Product Name/Title: Finder 62 Series Power Relay Plug in 16A 2CO 24V DC Coil with Pushbutton plus Mechanical Indicator
Brand: NHP
SKU: 623224VDC
Alternatively Known As: Power Relay, PCB Relay, Switching Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Number of Contacts: 1 Change Over Contact
- Rated Switching Power at AC 1: 4000 VA
- Rated Switching Power at AC 15 (230 V): 750 VA
- Breaking Capacity at DC 1 (30 V): 16 A
- Breaking Capacity at DC 1 (110 V): 0.6 A
- Control Supply Voltage (US) at DC: 24 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 30,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 36mm x 48mm x 38mm
- Weight: 0.2 kg
Key Features
- 16A nominal current with a 24V DC coil.
- Mechanical indicator for operational status.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 62 Series Power Relay Plug in 16A 2CO 24V DC Coil is available now for immediate purchase, ideal for industrial and commercial applications.
