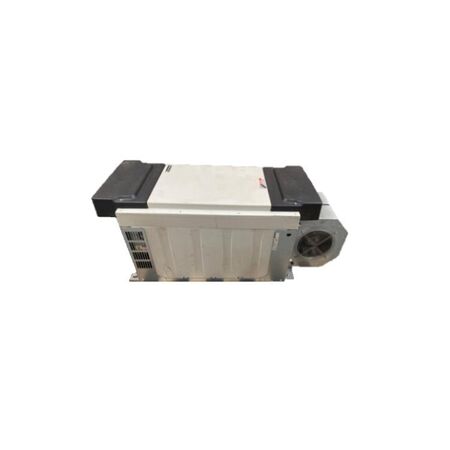

Power Structure Module SKH1PWRMODF12D | 800-900 HP | 3 Phase | UL Open Type | by Allen-Bradley
The Power Structure Module SKH1PWRMODF12D is designed for high-performance motor control, compatible with PowerFlex 700S and 700H series. With a power rating of 800-900 HP and a robust 3-phase design, it supports industrial automation applications, ensuring efficient energy use and compliance with safety standards. Ideal for heavy machinery, this module guarantees optimal performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Input Current: 994/927-1162/1038 AMP
- Input Voltage: 432-528 VAC, 583-713 VDC
- Input Frequency: 47-63 Hz
- Output Current: 1555/1600 AMP max
- Output Voltage: 0-460 VAC
- Output Frequency: 0-320 Hz
- Phase: 3 Phase
- Frame Size: 12
- Power Rating: 800-900 HP / 500-560 KW
- Enclosure Rating: UL Open Type / IP00
- Dimensions (H x L x W): 600mm x 300mm x 400mm
- Weight: 150 kg
Key Features
- Compatible with PowerFlex 700S and 700H series
- Frame 12 design supporting 800-900 HP / 500-560 KW
- Input: 994/927-1162/1038 AMP, 3 Phase, 432-528 VAC, 583-713 VDC, 47-63 Hz
- Output: 1555/1600 AMP max, 3 Phase, 0-460 VAC, 0-320 Hz
- UL Open Type / IP00 rated
Professional Installation Requirements
- Installation by a qualified electrical engineer or technician is required to ensure compliance with electrical safety standards and optimal performance.
Applications
- Industrial motor control and automation
- High power variable frequency drives
- Heavy machinery requiring 800-900 HP power modules
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports energy-efficient motor control reducing power consumption in industrial applications
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley SKH1PWRMODF12D Power Structure module is available for immediate purchase, ideal for industrial motor control and automation applications.
