Trade Discount 25%
Power Supply and Battery Box Tecom

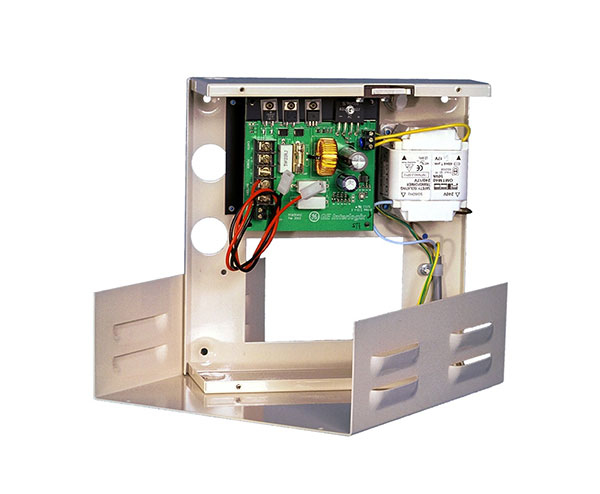

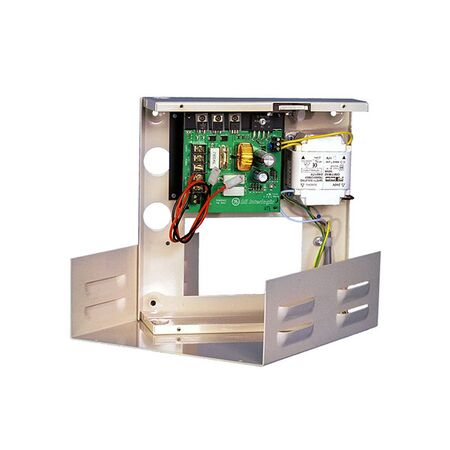

Tecom power supply and battery box. Ideal for housing power supplies and batteries in alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tecom TS0073 Power Supply and Battery Box, Tecom Alarm Power Supply Enclosure, Tecom 2A Backup Power Supply
Technical Specifications
- Model: TS0073
- Mains Input: 240V AC
- Output Voltage: 13.8V DC
- Maximum Output Current: 2A
- Battery Charge Output: 13.8V DC
- Battery Capacity: 1 x 6.5Ah maximum
- Standby Input Current: 70mA AC at 240V
- Maximum Input Current: 230mA AC at 240V
- Monitoring Output: Open collector mains-present signal, 50mA maximum
- Mains Indication: On-board Mains OK LED
- Enclosure: Metal wall-mount enclosure
- Power Cord: 1m, 3-pin mains cord
- Protection: Internal battery fuse and built-in tamper
- Mounting: Suitable for mounting over a standard twin GPO
- Certification: ACA certified according to the manufacturer catalogue
- Dimensions (H x L x W): 230mm x 240mm x 90mm
- Weight: 0.5 kg
Key Features
- Regulated 13.8V DC output for alarm and access-control equipment
- 2A maximum output capacity
- Integrated battery charging facilities
- Accommodates one 6.5Ah backup battery
- Metal enclosure with built-in tamper protection
- Can be mounted directly over a standard twin GPO
- Internal fuse protects the battery from excessive loads
- Includes a 1m 3-pin mains cord
Professional Installation Requirements
- Installation involves 240V AC mains power and should be completed by a licensed electrician or suitably qualified security-system installer. Installation must comply with AS/NZS 3000 and the manufacturer's instructions.
Applications
- Alarm system power supply and standby backup
- Tecom Challenger access-control systems
- Remote alarm system devices and peripherals
- Security and access-control installations requiring enclosed battery backup
Standards & Compliance
- ACA certified for the Australian market, as stated in the manufacturer catalogue
- AS/NZS 3000 installation requirements apply to the 240V AC mains connection
Environmental Benefits
- Regulated power output can reduce unnecessary energy consumption in connected security equipment
- Rechargeable battery backup supports longer system service continuity and reduces disposable battery waste
- Metal enclosure components are recyclable at end of service life
- Robust enclosure and protected electronics can help extend product service life and reduce replacement waste
Warranty Information
Five-year warranty for Tecom Challenger hardware, subject to Carrier Fire & Security Australia warranty terms and verification of the fault.
Available Now
Available through Tecom/Aritech channels and authorised Australian security-system distributors.
