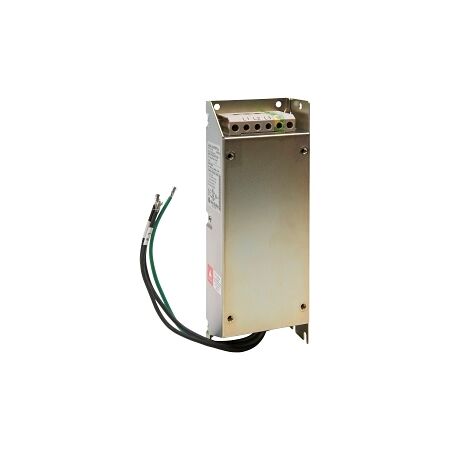

PowerFlex 4 VSD External Filter 3-Phase 480V Frame A NHP

BRAND: Allen-Bradley
SKU: 22RF5P7AL
$225.10 List price: $280.50
+ −
30 Days Return Electricians Unlock Trade Access
PowerFlex 4 VSD external filter designed for 480V 3-phase frequency control applications. Built for use with PowerFlex Legacy Compact variable speed drive systems to support performance and reliability. Dimensions (H x L x W): 200mm x 400mm x 300mm with a weight of 5 kg and compliance with AS/NZS 60950. Refer to the information below for installation requirements, application guidance and technical specifications.
Technical Specifications
  • Voltage: 480V
  • Phase: 3-Phase
  • Category: PowerFlex Legacy Compact
  • ETIM Class: Accessories/spare parts for frequency controller
  • Dimensions (H x L x W): 200mm x 400mm x 300mm
  • Weight: 5 kg
Key Features
  • Designed for use with PowerFlex 4 VSD systems.
  • Enhances performance and reliability of variable speed drives.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Manufacturing and processing plants
  • Commercial: HVAC systems and automation
  • General: Any application requiring frequency control
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Improves energy efficiency by optimizing drive performance.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 4 VSD External Filter 3Phase 480V Frame A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable frequency control.

Non-Returnable & Non-Cancellable


FAQ

Q: What systems is this external filter designed for?
A: It is designed for use with PowerFlex 4 VSD systems and is classified under the PowerFlex Legacy Compact category.

Q: What voltage and phase configuration does this filter support?
A: The filter is rated for 480V operation and 3-phase installations.


Pair this external filter with a VSD line filter for frequency control installations requiring dedicated filtering components.

A line reactor can be incorporated into compatible drive systems where reactor-based components are specified.

Install alongside an EMC filter for PowerFlex 520 applications that require dedicated filtering hardware.

Register for a trade account to access exclusive pricing on this and other electrical products.

22RF5P7AL-AU-PowerFlex-Filter-Datasheet.pdf (22RF5P7AL-AU-PowerFlex-Filter-Datasheet.pdf, 270 Kb) [Download]
