PowerFlex 4 VSD Panel 3-Phase 415V | 3.7kW | Dynamic Braking | IP20 by NHP
PowerFlex 4 VSD panel with 3-phase 415V input and 3.7kW output—ideal for industrial motor control and commercial HVAC systems. Built for energy efficiency, with dynamic braking and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

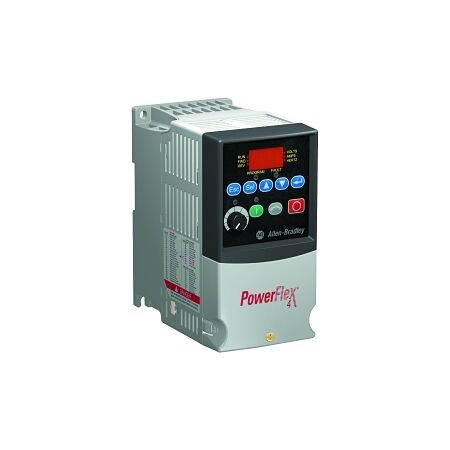

Product Name/Title: Allen-Bradley PowerFlex 4 VSD Panel 3Pole 400V 3.7kW No EMC
Brand: NHP
SKU: 22AD8P7N104
Alternatively Known As: PowerFlex 4 Variable Speed Drive, VSD Panel, Frequency Converter
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 415 V
- Nominal output power AC: 3.7 kW
- Nominal output current I2_n: 8.7 A
- KW rating normal duty: 3.7 kW
- KW rating heavy duty: 3.7 kW
- Dynamic braking transistor: Yes
- EMC version: No
- Contains keypad: Yes
- Frame size: B
- Operating temperature: -10-50 °C
- Dimensions (H x L x W): 200mm x 400mm x 300mm
- Weight: 10 kg
Key Features
- 3-phase input with a nominal voltage of 415V.
- Dynamic braking transistor included.
- IP20 degree of protection.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Motor control applications
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley PowerFlex 4 VSD Panel 3Pole 400V 3.7kW No EMC is available now for immediate purchase. Ideal for industrial and commercial motor control applications.
Non-Returnable & Non-Cancellable
