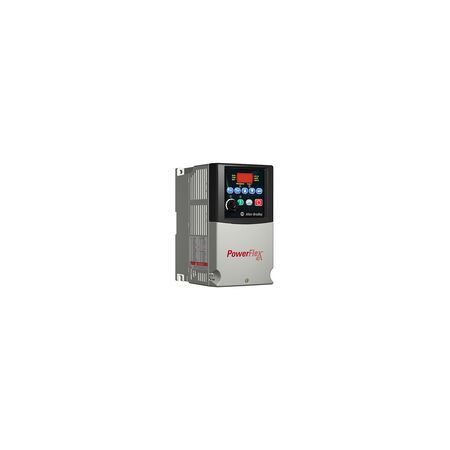

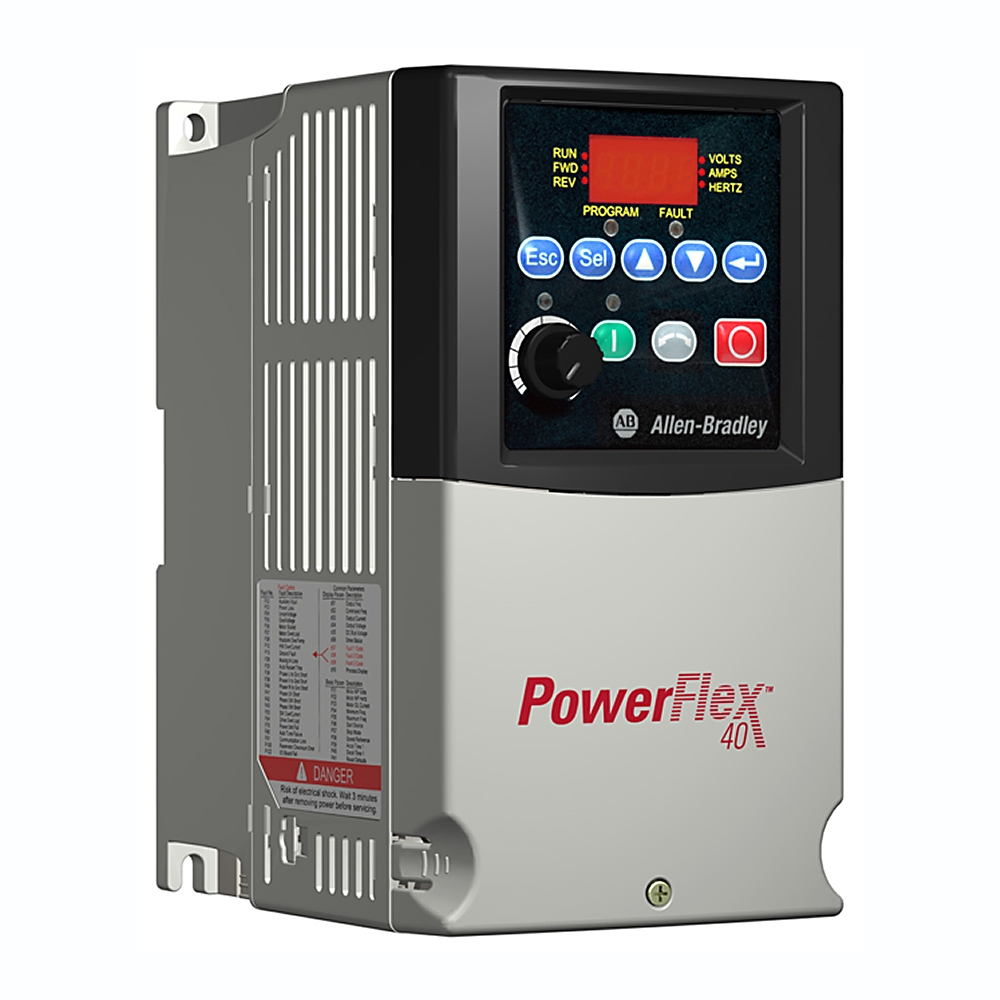

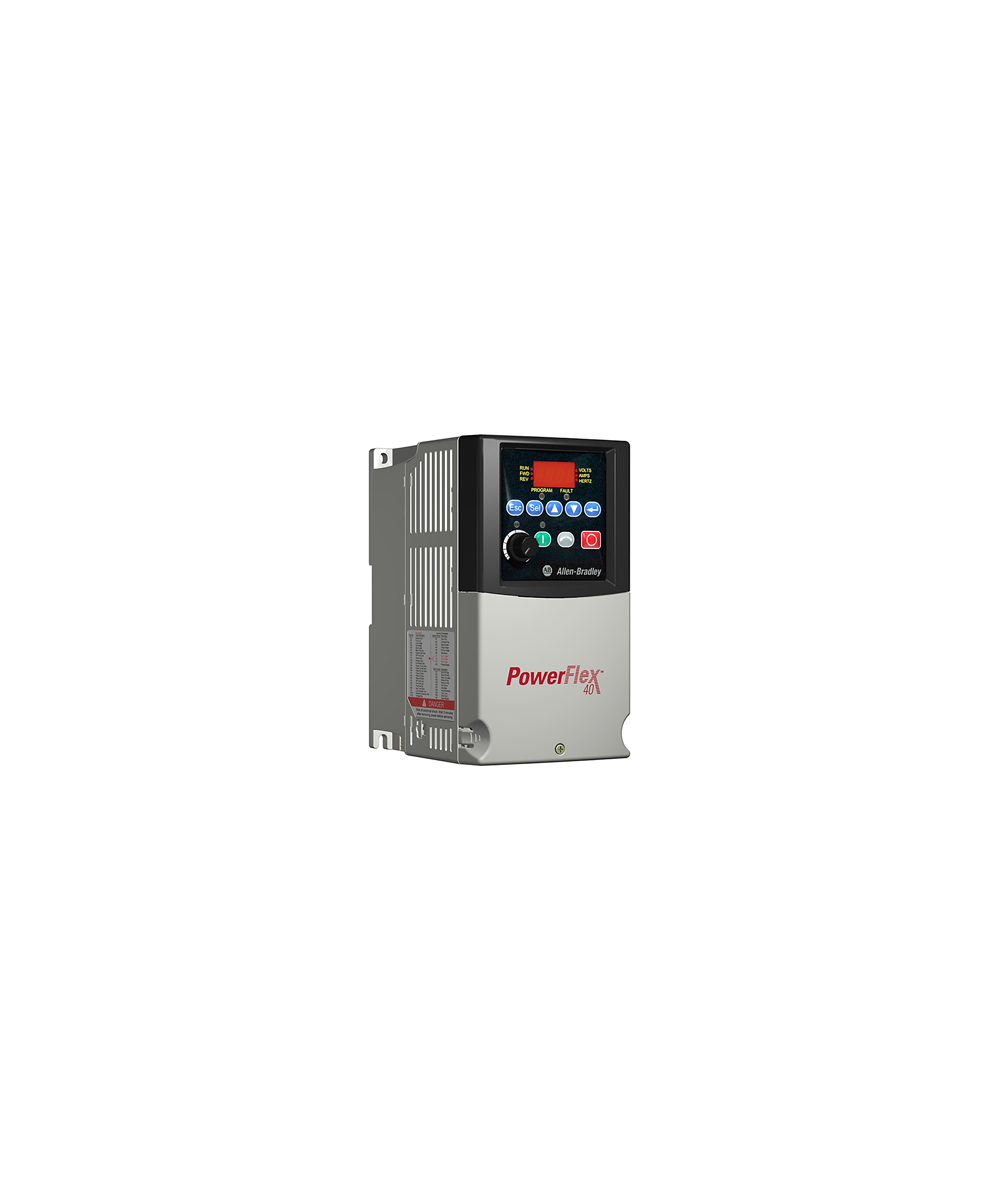

PowerFlex 40 AC Drive 1.5 kW | 380-480V AC | 4 Amps Current | IP20 Protection by Allen-Bradley

BRAND: Allen-Bradley
SKU: 22B-D4P0N104
$1,366.60 List price: $1,515.50
+ −
30 Days Return Delivery Options
PowerFlex 40 AC Drive with 1.5 kW output and 4 Amps current rating—ideal for industrial motor control and automation systems. Built for efficiency, with panel mount design and IP20 protection for reliable performance.

Product Name/Title: PowerFlex 40 AC Drive 1.5 kW | 380-480V AC | 4 Amps Current | IP20 Protection by Allen-Bradley

Brand: Allen-Bradley

SKU: 22B-D4P0N104

Alternatively Known As: PowerFlex 40 Drive, Allen-Bradley AC Drive 1.5 kW, 22B-D4P0N104 Variable Frequency Drive, VFD 1.5 kW

Technical Specifications
  • Input Voltage: 380-480V AC, 3 Phase
  • Current: 4 Amps
  • Power Output: 1.5 kW (2 HP)
  • Frame Size: B
  • Mounting: Panel Mount
  • Protection Rating: IP20, NEMA/UL Type Open
  • Display: LED
  • Control Interface: Digital Keypad
  • Communication: RS485
  • Filter: No CE Compliant Filter
  • Dimensions (H x L x W): 150mm x 120mm x 100mm
  • Weight: 3 kg
Key Features
  • PowerFlex 40 AC Drive
  • 380-480V AC, 3 Phase
  • 4 Amps current rating
  • 1.5 kW (2 HP) power output
  • Frame Size B
  • Panel Mount with IP20 protection
  • NEMA/UL Type Open
  • LED Display and Digital Keypad
  • RS485 communication port
Professional Installation Requirements
  • Installation must be performed by a qualified electrician familiar with industrial drives and compliant with local electrical standards.
Applications
  • Industrial motor control
  • Automation systems
  • Conveyor drives
  • Pumps and fans
  • Manufacturing equipment
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Energy-efficient motor control reduces power consumption
  • Improves system efficiency and reduces operational costs
  • Supports reduced carbon footprint through optimized motor performance
Warranty Information

1 year warranty covering manufacturing defects and performance issues.

Available Now

This product available now for immediate purchase.
