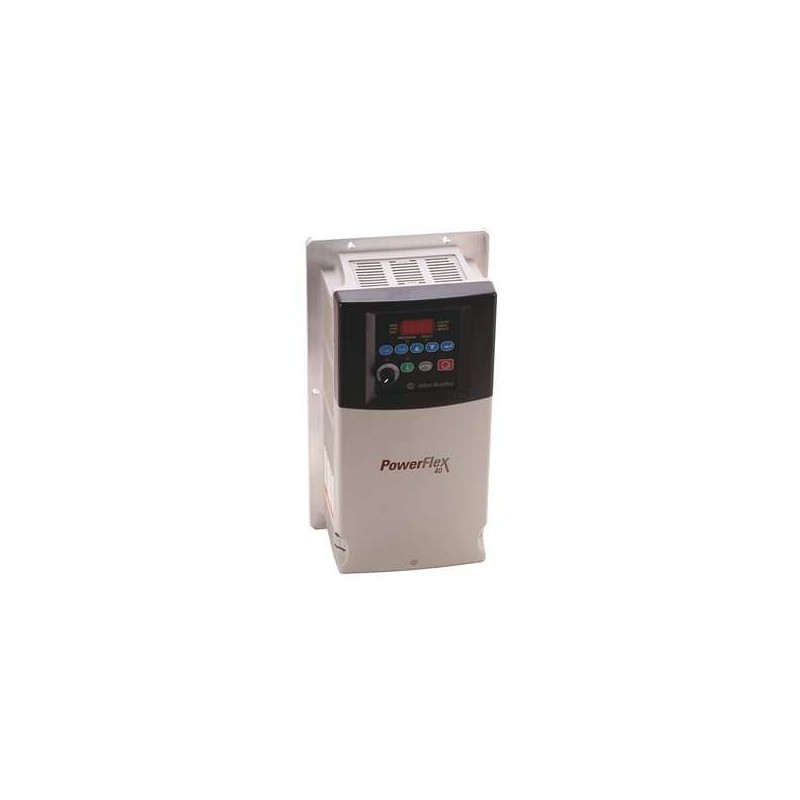

PowerFlex 40 Variable Frequency Drive | 5.5 kW | 380-480V AC | Panel Mount with IP20 Protection by Allen-Bradley

BRAND: Allen-Bradley
SKU: 22B-D012N104
$2,336.80 List price: $2,591.30
+ −
30 Days Return Delivery Options
PowerFlex 40 variable frequency drive with 5.5 kW power output and 380-480V AC voltage—ideal for industrial motor control and automation systems. Built for efficiency, it features a digital keypad, LED display, and panel mount design with IP20 protection.

Product Name/Title: PowerFlex 40 Variable Frequency Drive | 5.5 kW | 380-480V AC | Panel Mount with IP20 Protection by Allen-Bradley

Brand: Allen-Bradley

SKU: 22B-D012N104

Alternatively Known As: PowerFlex 40 VFD, Allen-Bradley VFD 5.5kW, 22B-D012N104 Variable Frequency Drive

Technical Specifications
  • Voltage: 380-480V AC, 3 Phase
  • Current: 12 Amps
  • Power: 5.5 kW (7.5 HP)
  • Frame Size: C
  • Mounting: Panel Mount
  • Protection: IP20, NEMA/UL Type Open
  • Display: LED
  • Control Interface: Digital Keypad
  • Communication: RS485
  • Filter: No CE Compliant Filter
  • Dimensions (H x L x W): 250mm x 150mm x 150mm
  • Weight: 5 kg
Key Features
  • PowerFlex 40 AC Drive
  • 380-480V AC, 3 Phase
  • 12 Amps current rating
  • 5.5 kW (7.5 HP) power output
  • Frame Size C
  • Panel Mount with IP20 protection
  • NEMA/UL Type Open
  • LED Display and Digital Keypad
  • RS485 communication port
Professional Installation Requirements
  • Installation by a qualified electrician or automation specialist is required to ensure compliance with electrical standards and safe operation.
Applications
  • Industrial motor control
  • Automation systems
  • Manufacturing equipment
  • Conveyor systems
  • Pumps and fans
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Energy-efficient motor control reduces power consumption.
  • Improves motor lifespan by providing smooth start and stop.
  • Reduces mechanical stress and maintenance needs.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

This product available now for immediate purchase.
