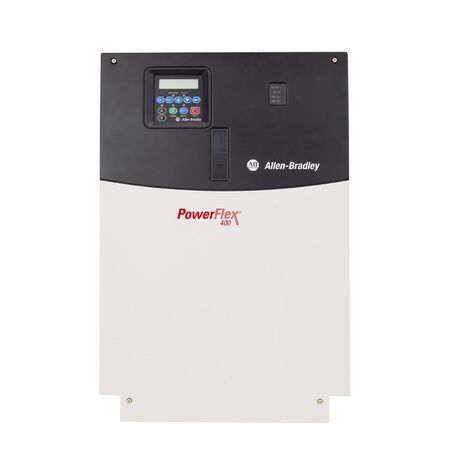

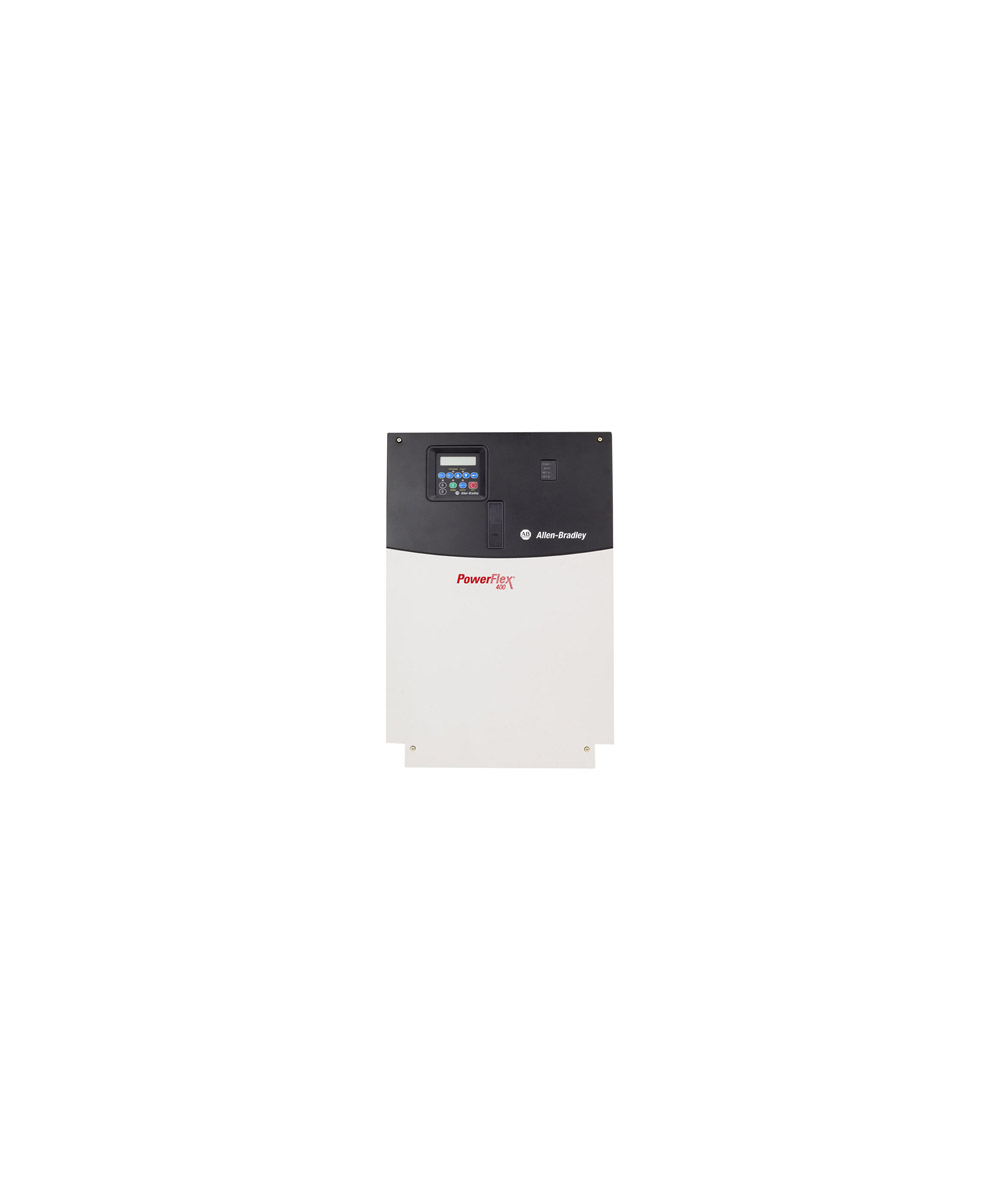

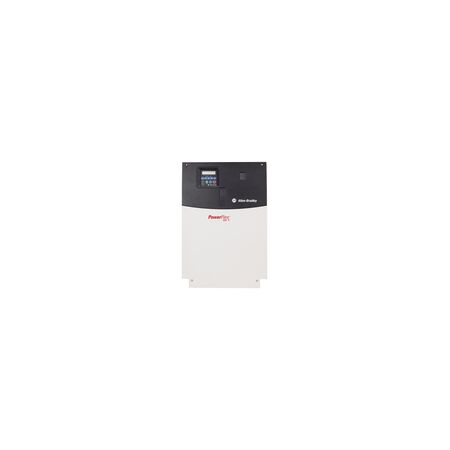

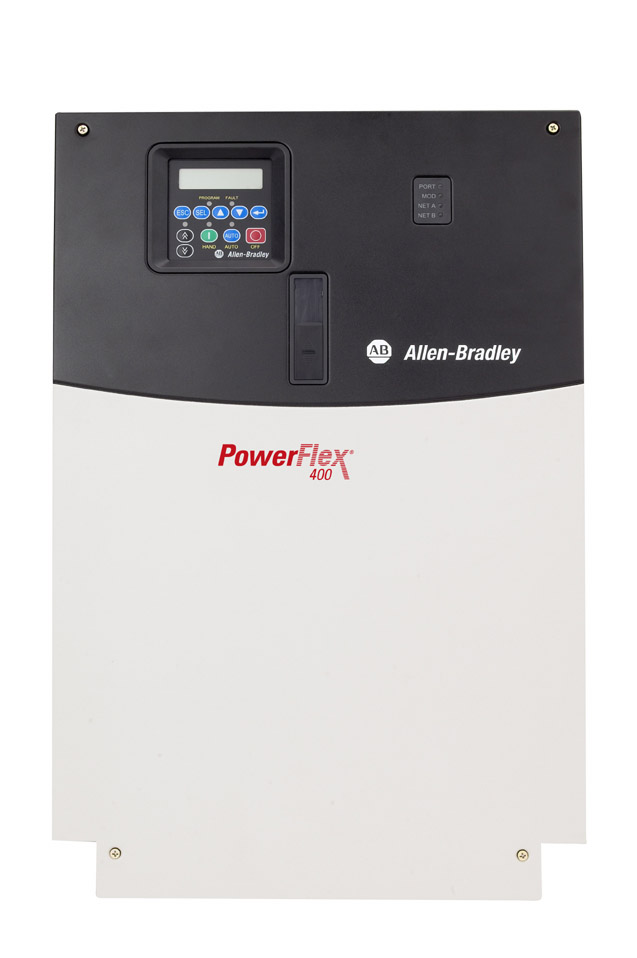

PowerFlex 400 Drive 90 kW | 480 VAC Input | 170 Amps Current Rating | IP30 Enclosure by Allen-Bradley

BRAND: Allen-Bradley
SKU: 22C-D170A103
$12,471.20 List price: $13,829.70
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options
PowerFlex 400 drive with 90 kW motor power and 170 Amps current rating—ideal for industrial motor control in fans and pumps. Built for manufacturing plants and HVAC systems, it features an IP30 enclosure and fixed keypad for easy operation.

Product Name/Title: PowerFlex 400 Drive 90 kW | 480 VAC Input | 170 Amps Current Rating | IP30 Enclosure by Allen-Bradley

Brand: Allen-Bradley

SKU: 22C-D170A103

Alternatively Known As: PowerFlex 400 Drive, Allen-Bradley Fan Pump Drive, 22C-D170A103 Variable Frequency Drive, VFD for Fans and Pumps

Technical Specifications
  • Input Voltage: 480 VAC, 3 Phase
  • Current Rating: 170 Amps
  • Motor Power: 125 HP (90 kW)
  • Frame Size: F
  • Enclosure Rating: IP30 (NEMA 1 / UL Type 1)
  • Control Interface: Fixed Keypad
  • Communication: RS485
  • Brake IGBT: Not included
  • Dimensions (H x L x W): 600mm x 250mm x 300mm
  • Weight: 50 kg
Key Features
  • PowerFlex 400 series drive designed for fan and pump applications
  • 480 VAC, 3 phase power input
  • 170 Amps current rating
  • 125 HP motor capacity
  • Frame Size F
  • IP30 (NEMA 1 / UL Type 1) enclosure rating
  • Fixed keypad for easy operation
  • RS485 communication interface
  • Does not include Brake IGBT
Professional Installation Requirements
  • Installation must be performed by a qualified electrician experienced with industrial drives to ensure compliance with electrical standards and safety.
Applications
  • Industrial motor control for fans and pumps
  • Manufacturing plants
  • HVAC systems
  • Water treatment facilities
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Energy-efficient motor control reduces power consumption
  • Improves system efficiency and reduces carbon footprint
  • Supports variable speed operation to optimize energy use
Warranty Information

1 year warranty covering manufacturing defects and performance issues.

Available Now

This product available now for immediate purchase.
