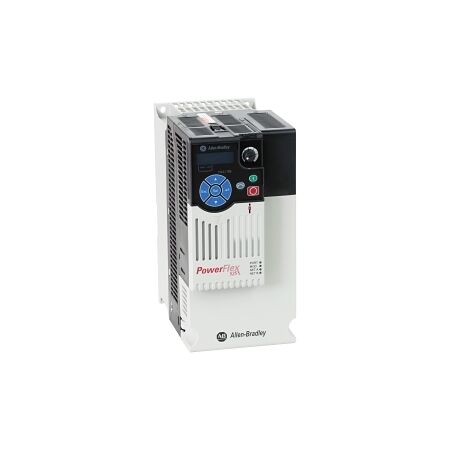

Allen-Bradley PowerFlex 523 VSD 480V IP20 13A 5.5kW ND and HD Frame C

PowerFlex 523 VSD 480V | 13A 5.5kW | IP20 Frame C by NHP

BRAND: NHP

SKU: 25AD013N114

$2,470.70 List price: $3,280.80

+ −

30 Days Return Delivery Options

PowerFlex 523 VSD with 480V input and 13A output—ideal for industrial and commercial applications. Built for enhanced efficiency with variable speed control and dynamic braking.

Description
Attachments

Product Name/Title: Allen-Bradley PowerFlex 523 VSD 480V IP20 13A 5.5kW ND and HD Frame C

Brand: NHP

SKU: 25AD013N114

Alternatively Known As: PowerFlex 523 Variable Speed Drive, PF523 VSD, Allen-Bradley VSD

Technical Specifications

Number of phases input: 3
Nominal input voltage: 415 V
Nominal output power AC: 5.5 kW
Nominal output current I2_n: 13 A
KW rating normal duty: 5.5 kW
KW rating heavy duty: 5.5 kW
Dynamic braking transistor: Yes
Control characteristic: PID
EMC version: Yes
Suitable for safety functions: No
Contains keypad: Yes
Frame size: C
Degree of protection IP: IP20
Operating temperature: -20-50 °C
Dimensions (H x L x W): 200mm x 300mm x 150mm
Weight: 5.0 kg

Key Features

Variable speed control for enhanced efficiency.
Dynamic braking transistor for improved performance.
PID control characteristic for precise operation.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance.

Applications

Industrial: Manufacturing, processing, and automation systems
Commercial: HVAC systems, pumps, and fans

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Energy-efficient operation reduces overall energy consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 523 VSD is available now for immediate purchase, ideal for industrial and commercial applications.

25AD013N114-AU-PF523-Variable-Speed-Drive-Datasheet.pdf (25AD013N114-AU-PF523-Variable-Speed-Drive-Datasheet.pdf, 258 Kb) [Download]
