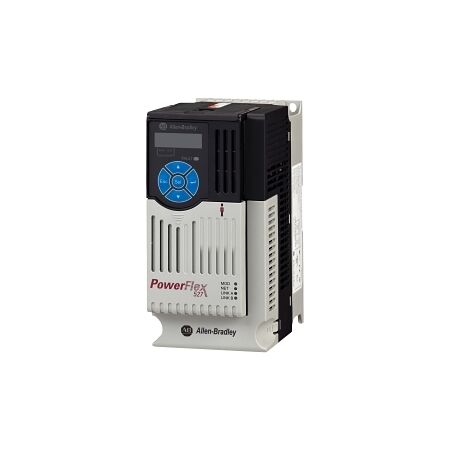

PowerFlex 527 VSD 240V | 11A 2.2kW | IP20 Frame B by NHP

BRAND: NHP
SKU: 25CA011N114
$2,106.00 List price: $2,796.50
+
Variable speed drive with 240V input and 11A output—ideal for industrial motor control and commercial HVAC systems. Built for energy efficiency, with dynamic braking and PID control for precise operation.

Product Name/Title: Allen-Bradley PowerFlex 527 VSD 240V IP20 11A 2.2kW ND and HD Frame B

Brand: NHP

SKU: 25CA011N114

Alternatively Known As: PowerFlex 527 Variable Speed Drive, Allen-Bradley VSD, PowerFlex Drive

Technical Specifications
  • Input Phases: 1
  • Nominal Output Power: 2.2 kW
  • Nominal Output Current: 11 A
  • Normal Duty KW Rating: 2.2 kW
  • Heavy Duty KW Rating: 2.2 kW
  • Dynamic Braking Transistor: Yes
  • Control Characteristic: PID
  • EMC Version: Yes
  • Suitable for Safety Functions: Yes
  • Contains Keypad: Yes
  • Frame Size: B
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 200mm x 150mm x 150mm
  • Weight: 2.5 kg
Key Features
  • Variable speed control for enhanced efficiency.
  • Dynamic braking transistor for improved performance.
  • PID control characteristic for precise operation.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Motor control applications
  • Commercial: HVAC systems, pumps, and fans
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Energy-efficient operation reduces overall energy consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 527 VSD 240V IP20 11A 2.2kW ND and HD Frame B is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

25CA011N114-AU-PF527-Variable-Speed-Drive-Datasheet.pdf (25CA011N114-AU-PF527-Variable-Speed-Drive-Datasheet.pdf, 264 Kb) [Download]
