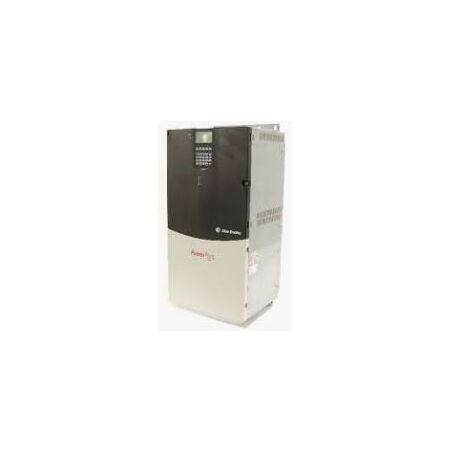

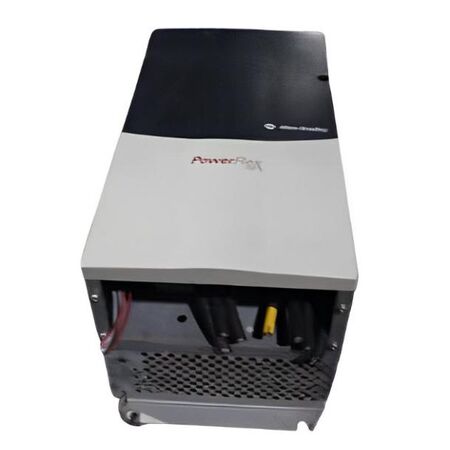

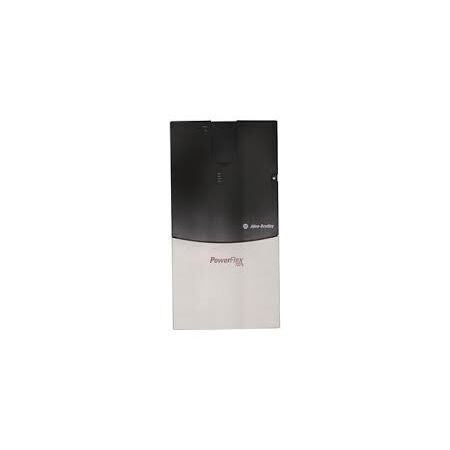

PowerFlex 700 AC Drive | 100 HP | 125 Amp | 480 VAC | IP20 Enclosure | by Allen-Bradley
The PowerFlex 700 AC Drive delivers 100 HP and 125 Amp capacity, making it ideal for industrial motor control applications. Designed for 480 VAC, 3-phase operation, this drive features an IP20 enclosure and includes a brake IGBT for enhanced performance. Perfect for manufacturing automation, HVAC systems, and conveyor systems, it optimizes energy efficiency while extending equipment life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 480 VAC
- Frequency: 60 Hz
- Phase: 3 phase
- Current: 125 Amp
- Power: 100 HP
- Frame: 5
- Enclosure: IP20 / NEMA Type 1
- Brake IGBT included
- CE filter and common mode choke
- Communication: RS485
- Control: Vector control with 115 VAC I/O
- Dimensions (H x L x W): 600mm x 250mm x 300mm
- Weight: 25 kg
Key Features
- 100 HP power rating
- 125 Amp current capacity
- 480 VAC, 3 phase, 60 Hz operation
- Frame 5 size
- IP20 / NEMA Type 1 enclosure
- Brake IGBT included
- CE filter and common mode choke
- RS485 communication
- Vector control with 115 VAC I/O
- Manual included
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical standards and safe operation.
Applications
- Industrial motor control
- Manufacturing automation
- HVAC systems
- Pumps and fans
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by optimizing motor speed and reducing power consumption
- Reduces mechanical stress on motors, extending equipment life and reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley PowerFlex 700 AC Drive 100 HP 125 Amp 480 VAC is available for immediate purchase, ideal for industrial motor control applications.
