PowerFlex 700 AC Drive | 400 VAC Input | 105 Amp Current | 55 kW Power Output | IP20 Enclosure | by Allen-Bradley
PowerFlex 700 AC Drive | 400 VAC Input | 105 Amp Current | 55 kW Power Output | IP20 Enclosure | by Allen-Bradley
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

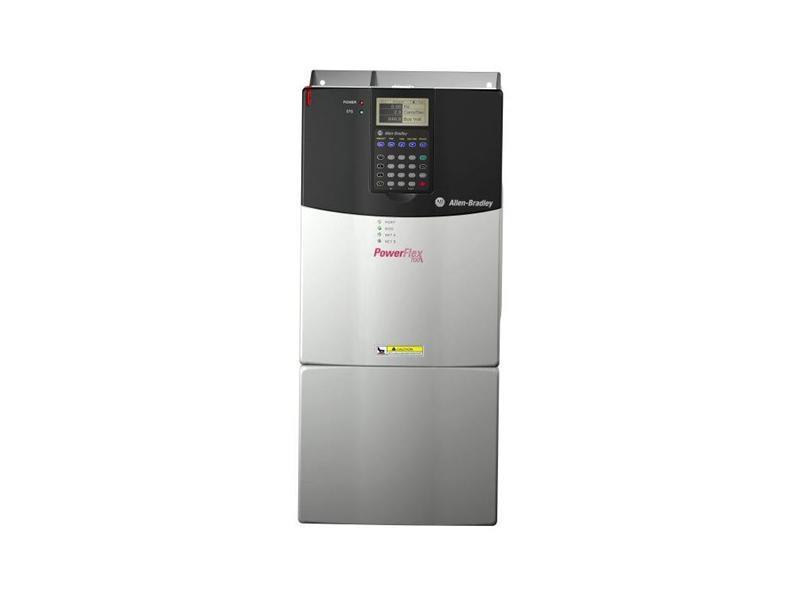

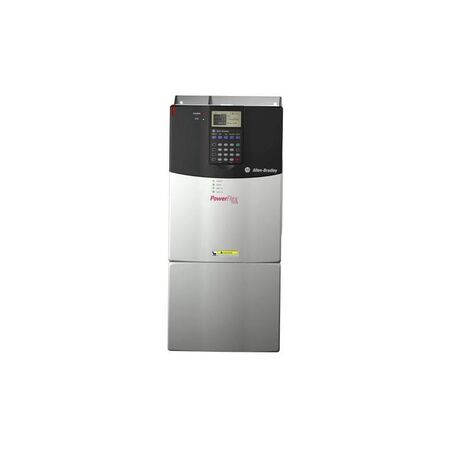

Product Name/Title: Allen-Bradley PowerFlex 700 AC Drive 20BC105A3AYNANC0
Brand: Allen-Bradley
SKU: 20BC105A3AYNANC0
Alternatively Known As: PowerFlex 700 VFD, Allen-Bradley AC Drive, 20BC105A3AYNANC0 Drive
Technical Specifications
- Input Voltage: 400 VAC
- Frequency: 50 Hz
- Phase: 3 Phase
- Current: 105 Amp
- Power: 55 kW
- Enclosure: IP20 / NEMA Type 1
- Display: LCD with full keypad
- Control: Manual with brake IGBT
- Filters: CE filter and common mode choke
- Communication: RS485
- Control Type: Vector control with 24 VDC I/O
- Dimensions (H x L x W): 400mm x 300mm x 250mm
- Weight: 25 kg
Key Features
- 400 VAC, 50 Hz, 3 Phase power supply
- 105 Amp current rating
- 55 kW power output
- Frame 5 size with IP20 / NEMA Type 1 enclosure
- LCD display with full keypad for easy operation
- Manual control with brake IGBT
- CE filter and common mode choke included
- RS485 communication interface
- Vector control with 24 VDC I/O
Professional Installation Requirements
- Installation by a qualified electrician or automation professional is required to ensure compliance with electrical standards and safe operation.
Applications
- Industrial motor control
- Manufacturing automation
- Process control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by optimizing motor speed and torque
- Reduces power consumption and operational costs
- Supports reduced mechanical wear and longer equipment life
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley PowerFlex 700 AC Drive 20BC105A3AYNANC0 is discontinued by the manufacturer but available for immediate purchase through Radwell with a 2-year warranty. Ideal for industrial motor control applications.
