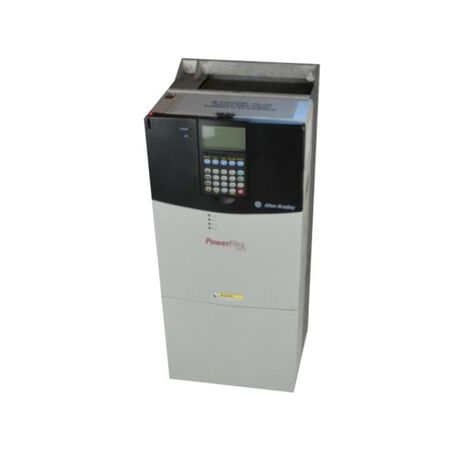

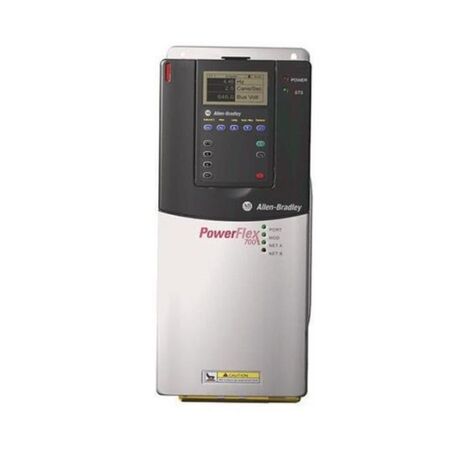

PowerFlex 700 AC Drive | 40 HP | 41 Amp | 600 VAC | IP20 Enclosure | by Allen-Bradley
The PowerFlex 700 AC Drive delivers robust performance with a 40 HP motor capacity and 41 Amp current rating, making it ideal for industrial motor control applications. Designed for 3-phase power supply at 600 VAC, this drive features vector control and an IP20 enclosure, ensuring reliability in manufacturing automation, HVAC systems, and conveyor operations. Enhance energy efficiency and reduce operational costs with this advanced variable frequency drive.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Input Voltage: 600 VAC
- Frequency: 60 Hz
- Phase: 3 phase
- Current: 41 Amp
- Horsepower: 40 HP
- Enclosure: IP20 / NEMA Type 1
- Brake IGBT included
- Communication: RS485
- Control: Vector control with 24 VDC I/O
- Filters: CE filter and common mode choke
- Dimensions (H x L x W): 400mm x 300mm x 200mm
- Weight: 15 kg
Key Features
- 600 VAC, 60 Hz, 3 phase power supply
- 41 Amp current rating
- 40 HP motor capacity
- Frame 3 size
- IP20 / NEMA Type 1 enclosure
- HIM blank cover included
- Manual operation
- Integrated brake IGBT
- CE filter and common mode choke
- RS485 communication interface
- Vector control with 24 VDC I/O
Professional Installation Requirements
- Installation by a qualified electrician or automation specialist is required to ensure compliance with electrical standards and safe operation.
Applications
- Industrial motor control
- Manufacturing automation
- HVAC systems
- Pumps and fans
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by optimizing motor speed and torque
- Reduces power consumption and operational costs
- Minimizes mechanical stress on motors, extending equipment life
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley PowerFlex 700 AC Drive is discontinued by the manufacturer but available for immediate purchase through Radwell with a 2-year warranty. Ideal for industrial motor control applications.
