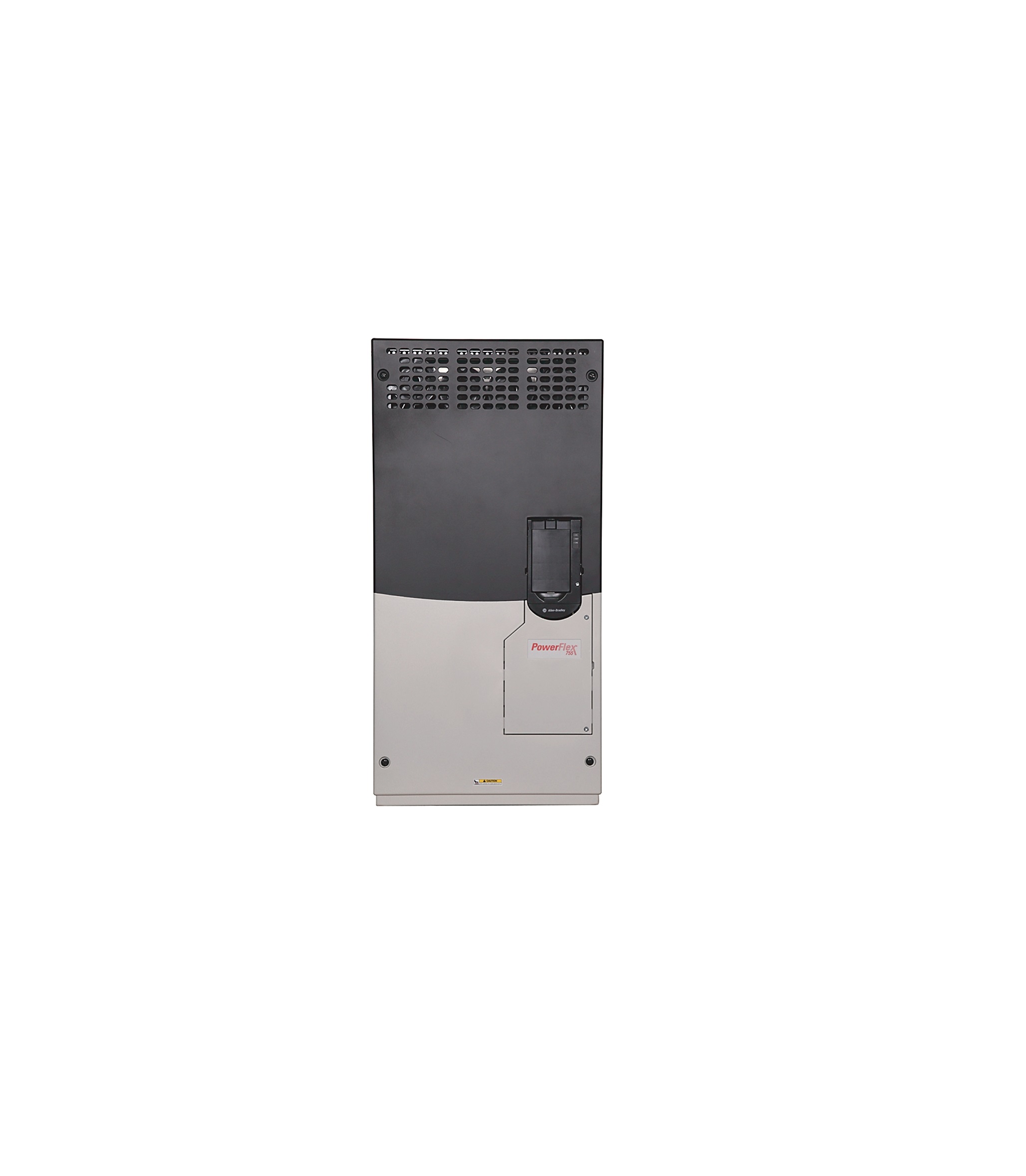

PowerFlex 753 AC Drive 160kW | 302 Amps Current | Forced Air Cooling | Open Type Enclosure by Allen-Bradley
PowerFlex 753 AC Drive with 160kW power and 302 Amps current—ideal for industrial motor control and automation. Built for manufacturing processes and HVAC systems, with forced air cooling for enhanced performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PowerFlex 753 AC Drive 160kW | 302 Amps Current | Forced Air Cooling | Open Type Enclosure by Allen-Bradley
Brand: Allen-Bradley
SKU: 20F1ANC302JA0NNNNN
Alternatively Known As: PowerFlex 753 Drive, Allen Bradley AC Drive 160kW, 20F1ANC302JA0NNNNN Drive
Technical Specifications
- Power: 160kW Normal Duty, 132kW Heavy Duty
- Current: 302 Amps
- Voltage: 400 VAC, 3 Phase
- Frame Size: 7
- Cooling: Forced Air
- Input: AC with Precharge
- Output: DB Transistor
- Enclosure: Open Type
- Filtered with CM jumper installed
- No DC terminals
- No Human Interface Module (HIM)
- Dimensions (H x L x W): 600mm x 400mm x 300mm
- Weight: 50 kg
Key Features
- Embedded I/O for flexible control
- Standard protection features
- Forced air cooling
- AC input with precharge
- No DC terminals
- Open type enclosure
- 302 Amps current rating
- Filtered with CM jumper installed
- DB Transistor output stage
- No Human Interface Module (HIM)
Professional Installation Requirements
- Installation by a qualified electrician or automation specialist is required to ensure compliance with electrical standards and safety.
Applications
- Industrial motor control and automation
- Manufacturing process drives
- HVAC systems
- Pumps and fans control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient motor control reduces power consumption
- Improved process efficiency lowers environmental impact
Warranty Information
1 year warranty against manufacturing defects.
Available Now
This product available now for immediate purchase.
