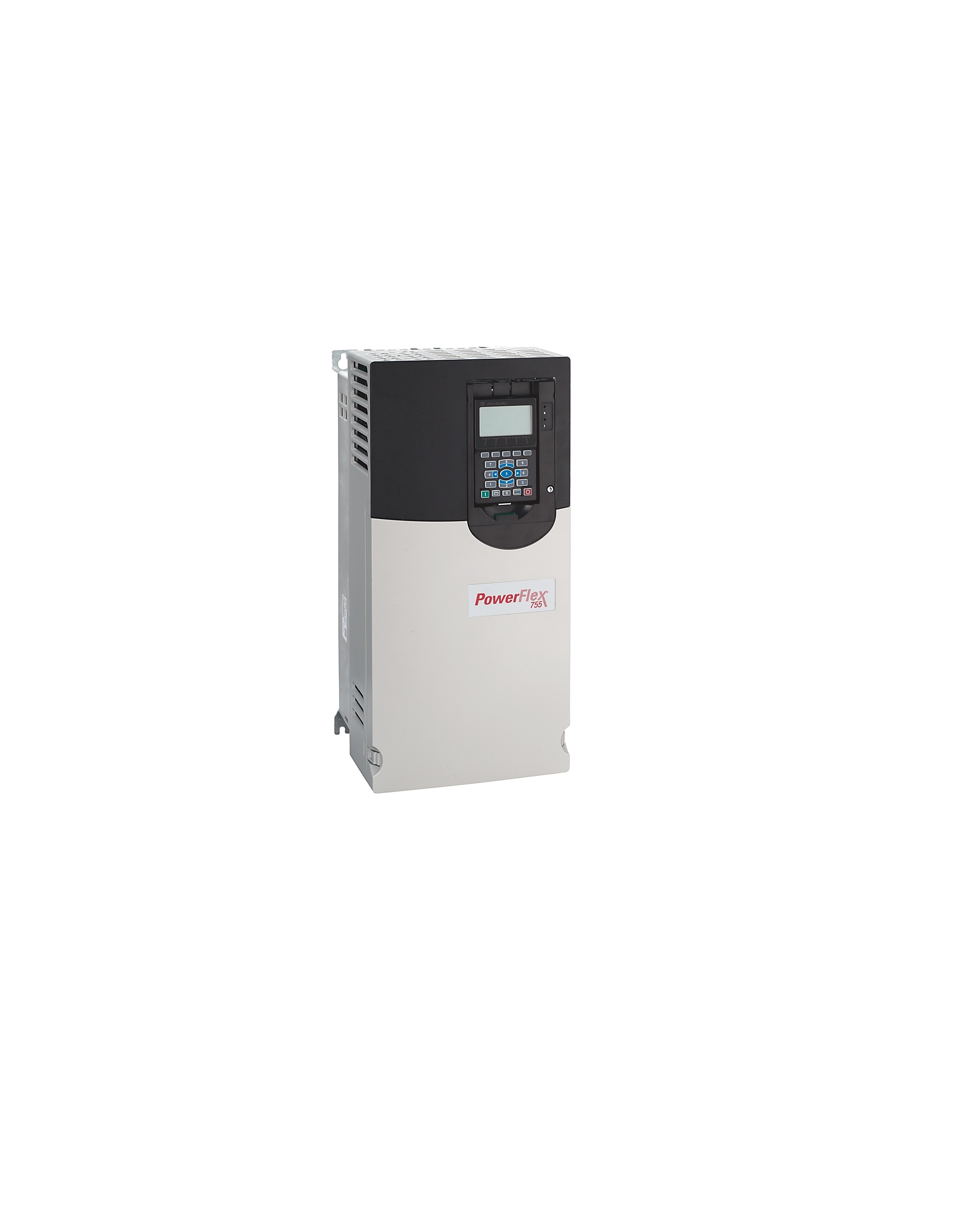

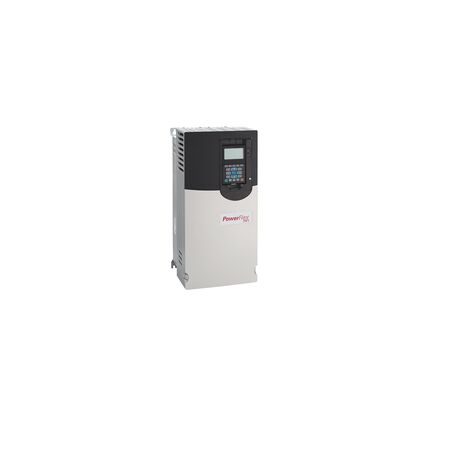

PowerFlex 753 AC Drive | 18.5kW Power Rating | 37 Amps Current | Open Type Enclosure by Allen-Bradley
PowerFlex 753 AC Drive with 18.5kW power rating and 37 Amps current—ideal for industrial motor control and automation. Built for manufacturing processes and HVAC systems, with energy-efficient operation and embedded I/O for enhanced functionality.
Sign in
Please login to continue to your account.
Product Name/Title: PowerFlex 753 AC Drive | 18.5kW Power Rating | 37 Amps Current | Open Type Enclosure by Allen-Bradley
Brand: Allen-Bradley
SKU: 20F11NC037JA0NNNNN
Alternatively Known As: PowerFlex 753 Drive, Allen Bradley AC Drive 18.5kW, 20F11NC037JA0NNNNN VFD, Variable Frequency Drive 18.5kW
- Power Rating: 18.5kW Normal Duty, 15kW Heavy Duty
- Current Rating: 37 Amps
- Input Voltage: 400 VAC, 3 Phase
- Drive Type: PowerFlex 753 AC Drive
- Cooling: Forced Air
- Enclosure: Open Type
- Embedded I/O included
- Filtered input with CM jumper installed
- Output Stage: DB Transistor
- Frame Size: 3
- No Human Interface Module (HIM)
- Dimensions (H x L x W): 300mm x 250mm x 200mm
- Weight: 15 kg
- PowerFlex 753 AC Drive with Embedded I/O
- Standard Protection and Forced Air cooling
- AC Input with DC Terminals
- Open Type enclosure
- 37 Amps current rating
- 18.5kW Normal Duty (ND), 15kW Heavy Duty (HD)
- 400 VAC, 3 Phase power supply
- Frame 3 size
- Filtered with CM jumper installed
- DB Transistor output stage
- No Human Interface Module (HIM) included
- Installation must be performed by a qualified electrician familiar with industrial AC drives to ensure compliance with electrical standards and safety.
- Industrial motor control and automation
- Manufacturing process drives
- HVAC systems
- Pumps and fans control
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Energy-efficient motor control reduces power consumption
- Improves process efficiency and reduces waste
- Supports variable speed operation to minimize energy use
1 year limited warranty covering manufacturing defects and workmanship.
This product available now for immediate purchase.
