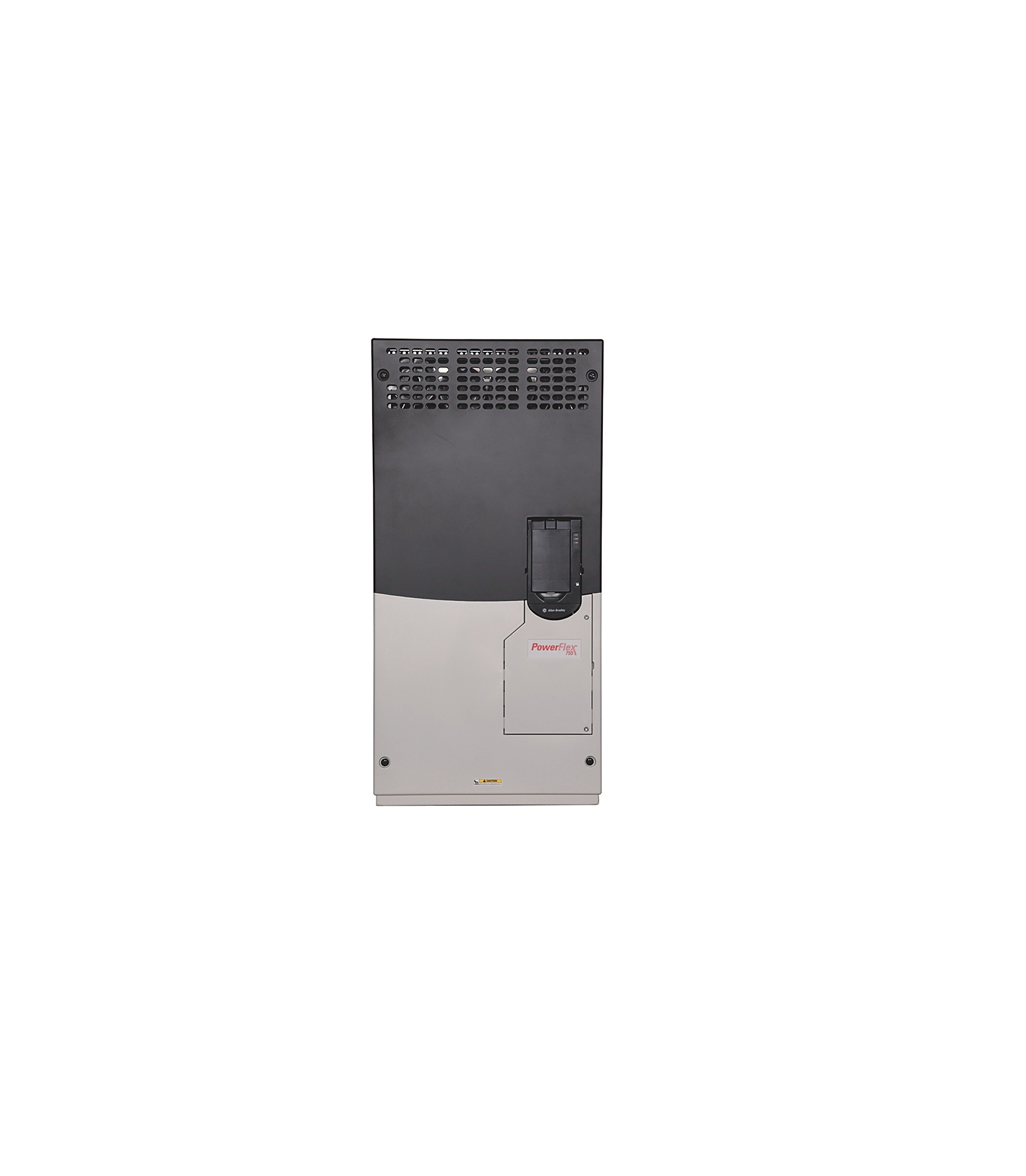

PowerFlex 753 AC Drive | 200kW Power Rating | 367 Amps Current | Open Type Enclosure by Pac Machinery
PowerFlex 753 AC Drive with 200kW power rating and 367 amps current—ideal for industrial motor control and automation. Built for manufacturing processes and HVAC systems, with forced air cooling for optimal thermal management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PowerFlex 753 AC Drive | 200kW Power Rating | 367 Amps Current | Open Type Enclosure by Pac Machinery
Brand: Pac Machinery
SKU: 20F1ANC367JA0NNNNN
Alternatively Known As: PowerFlex 753 AC Drive, Allen Bradley 200kW VFD, 20F1ANC367JA0NNNNN Variable Frequency Drive
Technical Specifications
- Power Rating: 200kW Normal Duty, 160kW Heavy Duty
- Current Rating: 367 Amps
- Input Voltage: 400 VAC, 3 Phase
- Frame Size: 7
- Cooling: Forced Air
- Input Type: AC with Precharge
- Enclosure: Open Type
- Filtered Input with CM jumper installed
- Output: DB Transistor
- No DC Terminals
- No Human Interface Module (HIM)
- Dimensions (H x L x W): 600mm x 300mm x 400mm
- Weight: 150 kg
Key Features
- Embedded I/O for integrated control
- Standard protection features
- Forced air cooling for thermal management
- AC input with precharge for safe startup
- Open type enclosure
- Filtered input for electrical noise reduction
- CM jumper installed for preferred configuration
- DB transistor output
- No Human Interface Module (HIM) included
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with industrial drives to ensure compliance with electrical standards and safety.
Applications
- Industrial motor control and automation
- Manufacturing process drives
- HVAC systems
- Pumps and fans control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient motor control reduces power consumption
- Improves process efficiency and reduces waste
- Supports sustainable industrial automation
Warranty Information
1 year warranty covering manufacturing defects and performance issues.
Available Now
This product available now for immediate purchase.
