PowerFlex 753 VSD 400V | 11.5A 5.5kW ND | IP20 Frame 1 by NHP
Variable speed drive with 400V input and 11.5A output—ideal for industrial motor control. Built for energy efficiency, with dynamic braking and PID control for precise operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

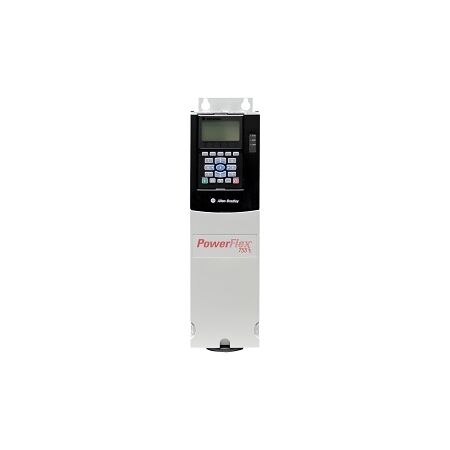

Product Name/Title: Allen-Bradley PowerFlex 753 VSD 400V IP20 11.5A 5.5kW ND or 8.7A 4kW HD Frame 1
Brand: NHP
SKU: 20F11RC011JA0NNNNN
Alternatively Known As: PowerFlex 753 VSD, Variable Speed Drive, Frequency Converter
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 415 V
- Nominal output power AC: 5.5 kW
- Nominal output current: 11.5 A
- KW rating normal duty: 5.5 kW
- KW rating heavy duty: 4 kW
- Dynamic braking transistor: Yes
- Control characteristic: PID
- EMC version: Yes
- Suitable for safety functions: Yes
- Contains keypad: No
- Frame size: 1
- Degree of protection: IP20
- Dimensions (H x L x W): 200mm x 300mm x 150mm
- Weight: 5.0 kg
Key Features
- Variable speed control for improved energy efficiency.
- Dynamic braking transistor for enhanced performance.
- PID control characteristic for precise operation.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Motor control in manufacturing and processing plants
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with relevant Australian standards for electrical equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley PowerFlex 753 Variable Speed Drive is available now for immediate purchase. Ideal for industrial and commercial motor control applications.
