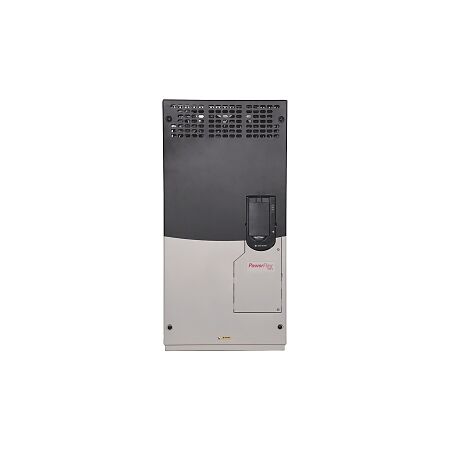

PowerFlex 753 VSD 400V | 160kW ND | 302A | IP20 Frame 7 by NHP
Variable speed drive with 400V input and 160kW output—ideal for industrial motor control. Built for energy efficiency, with dynamic braking and PID control for precise speed management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley PowerFlex 753 VSD 400V IP20 302A 160kW ND or 260A 132kW HD Frame ame 7
Brand: NHP
SKU: 20F1ANC302JA0NNNNN
Alternatively Known As: PowerFlex 753 VSD, Variable Speed Drive, Allen-Bradley VSD
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 400 V
- Nominal output power AC: 160 kW
- Nominal output current: 302 A
- KW rating normal duty: 160 kW
- KW rating heavy duty: 132 kW
- Dynamic braking transistor: Yes
- Control characteristic: PID
- EMC version: Yes
- Integrated motion function: No
- Suitable for safety functions: Yes
- Contains keypad: No
- Frame size: 7
- Degree of protection: IP20
- Operating temperature: -20-60 °C
- Storage temperature: -40-70 °C
- Dimensions (H x L x W): 882mm x 350mm x 430mm
- Weight: 48 kg
Key Features
- Nominal input voltage of 400V with a power output of 160kW.
- Dynamic braking transistor for enhanced performance.
- PID control characteristic for precise speed control.
- Suitable for safety functions.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Motor control applications in manufacturing and processing.
- Commercial: HVAC systems, pumps, and fans.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall energy consumption.
Warranty Information
Standard warranty terms apply, please check with the manufacturer.
Available Now
The Allen-Bradley PowerFlex 753 Variable Speed Drive is available now for immediate purchase, suitable for various industrial and commercial applications.
