PowerFlex 753 VSD 400V | 3.5A 1.5kW | Flange Mount | Frame 2 by NHP
PowerFlex 753 VSD with 3-phase 415V input and 1.5kW output—ideal for industrial motor control. Built for precision with PID control and dynamic braking, suitable for safety functions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

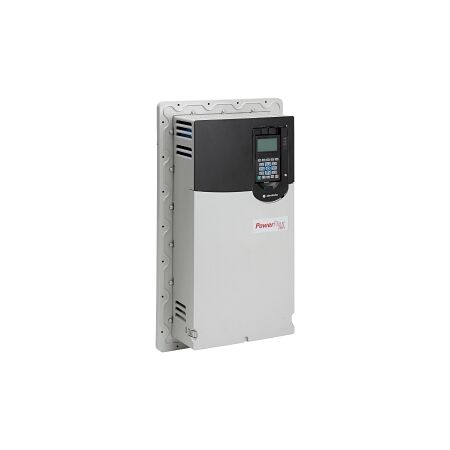

Product Name/Title: Allen-Bradley PowerFlex 753 VSD 400V Flange Mount 3.5A 1.5kW ND/HD Frame 2
Brand: NHP
SKU: 20F11FC3P5JA0NNNNN
Alternatively Known As: PowerFlex 753 Variable Speed Drive, Allen-Bradley VSD, Frequency Converter
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 415 V
- Nominal output power AC: 1.5 kW
- Nominal output current I2_n: 3.5 A
- KW rating normal duty: 1.5 kW
- KW rating heavy duty: 1.5 kW
- Dynamic braking transistor: Yes
- Control characteristic: PID
- EMC version: Yes
- Integrated motion function: No
- Suitable for safety functions: Yes
- Contains keypad: No
- Frame size: 2
- Degree of protection IP: IP20
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 5 kg
Key Features
- 3-phase input with a nominal voltage of 415 V.
- 1.5 kW output power with a nominal current of 3.5 A.
- Dynamic braking transistor for enhanced performance.
- PID control characteristic for precise speed control.
- Suitable for safety functions.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance and safety.
Applications
- Industrial: Motor control applications in manufacturing and processing.
- Commercial: HVAC systems, pumps, and fans.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall energy consumption.
- Improved process control leads to less waste and better resource management.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley PowerFlex 753 VSD 400V Flange Mount 3.5A 1.5kW ND/HD Frame 2 is available now for immediate purchase. Ideal for industrial and commercial motor control applications.
