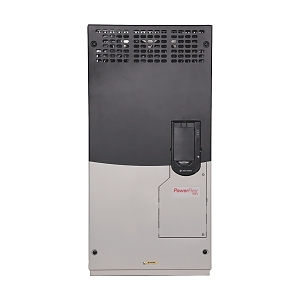

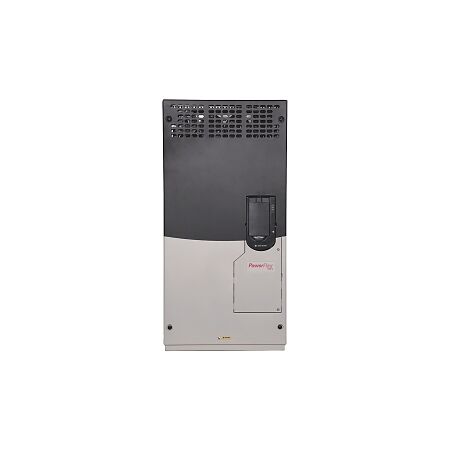

Allen-Bradley PowerFlex 753 VSD 400V IP54 367A 200kW ND or 302A 160kW HD Frame 7

PowerFlex 753 VSD 400V | 367A 200kW ND | IP54 Rated | Frame 7 by NHP

BRAND: NHP

SKU: 20F1AGC367JA0NNNNN

$60,455.90 List price: $80,277.50

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Variable speed drive with 400V input and 367A output—ideal for industrial and commercial applications. Built for energy efficiency, with IP54 protection and dynamic braking for enhanced performance.

Description
Attachments

Product Name/Title: Allen-Bradley PowerFlex 753 VSD 400V IP54 367A 200kW ND or 302A 160kW HD Frame 7

Brand: NHP

SKU: 20F1AGC367JA0NNNNN

Alternatively Known As: PowerFlex 753 Variable Speed Drive, PF753 VSD, Allen-Bradley VSD

Technical Specifications

Input Phases: 3
Nominal Input Voltage: 400 V
Nominal Output Power: 200 kW
Nominal Output Current: 367 A
KW Rating (Normal Duty): 200 kW
KW Rating (Heavy Duty): 160 kW
Dynamic Braking Transistor: Yes
Control Characteristic: PID
EMC Version: Yes
Suitable for Safety Functions: Yes
Frame Size: 7
Degree of Protection: IP54
Operating Temperature: -20 to 60 °C
Storage Temperature: -40 to 70 °C
Dimensions (H x L x W): 1614mm x 465mm x 610mm
Weight: 132 kg

Key Features

Variable speed drive with PID control characteristic.
Dynamic braking transistor included for enhanced performance.
IP54 rated for protection against dust and water ingress.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal performance and safety.

Applications

Industrial: Manufacturing, processing plants, and automation systems
Commercial: HVAC systems, pumps, and fans

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation standards.

Environmental Benefits

Energy-efficient operation reduces overall energy consumption and carbon footprint.

Warranty Information

Standard warranty terms apply, please check with the supplier.

Available Now

The Allen-Bradley PowerFlex 753 VSD is available now for immediate purchase, ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

20F1AGC367JA0NNNNN-AU-PF753-Variable-Speed-Drive-Datasheet.pdf (20F1AGC367JA0NNNNN-AU-PF753-Variable-Speed-Drive-Datasheet.pdf, 218 Kb) [Download]
